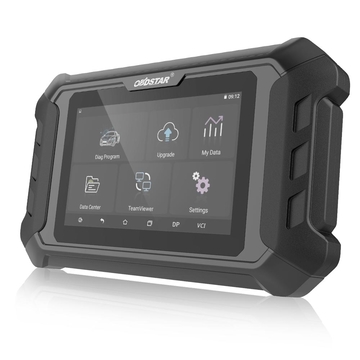

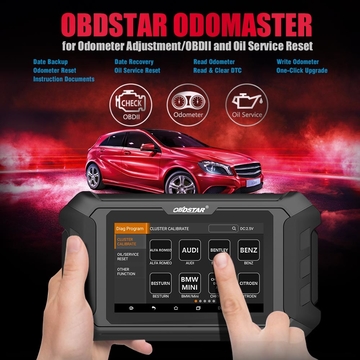

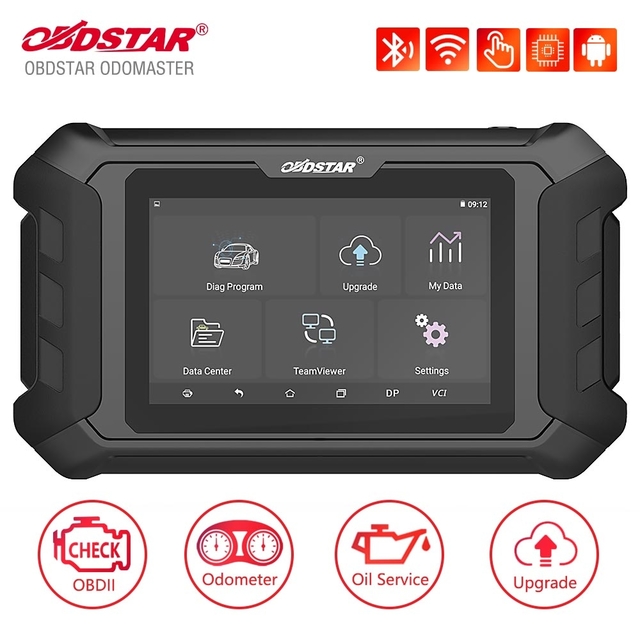

OBDSTAR ODO Master for Adjustment/Oil Reset/OBDII Functions

OBDSTAR ODO Master Highlights:

1. The update cycle is short and fast (updated every 2-3 days)
2. Free Update Online for One Year. After one year it will cost $199 per year. Check OBDSTAR ODO Master Update Service
3. Strong competitiveness and industry advantage
4. Some models can support 20/21 years of car (such as GM/Chrysler)
5. Multi-Language: English, Italian, Russian, German, Spanish, Polish, Portuguese, French (Default language is English, please pass us serial number to change)

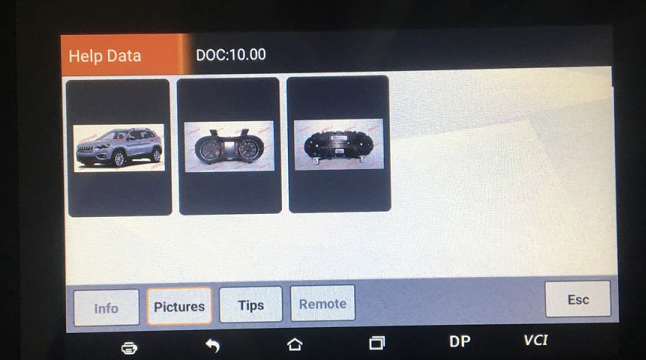

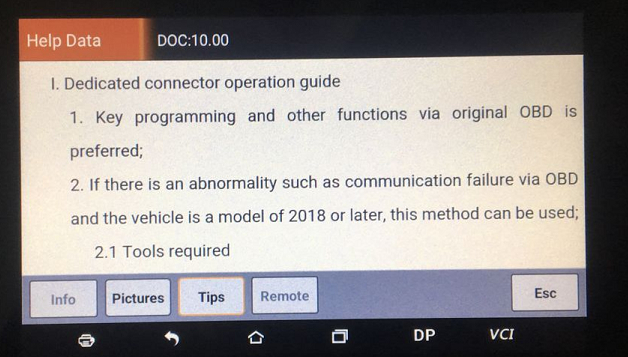

6. Add a new help function as shown below: (Applicable to some models, R & D information is being update)

Dealer Code: 0086A002





OBDSTAR ODO Master Functions List:

1. Via OBDII

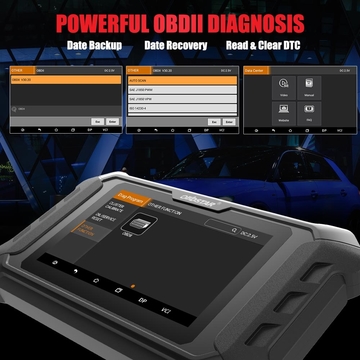

2. Data Backup
3. Data Recovery
4. Read
5. Write
6. Reset
7. Oil Service Reset
8. Read & Clear DTC

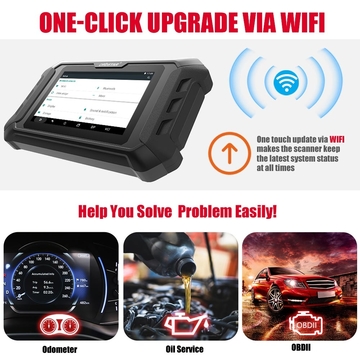

9. One-Click Upgrade
10. Instruction Documents

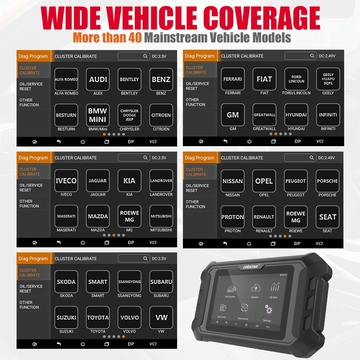

11. Wide Vehicle Coverage



OBDSTAR ODO Master Support Car Software list:

Europe:
ALFA ROMEO,AUDI,BENTLEY,BENZ,BMW/Mini,CITROEN,PEUGEOT,FERRARI,FLAT,JAGUAR,LANCIA,LAND ROVER,MASERATI,OPEL,PORSCHE,RENAULT,VOLVO,IVECO,SKODA,SEAT,VW

Japan:
ISUZU,MAZDA,MITSUBISHI,INFINITE,NISSAN,SUBARU,TOYOTA

Korea:
HYUNDAI,KIA,SANGYONG

America:
FORD/LINCOLN,CHRYSLER,GM

China:
GEELY,BESTURN,CHANGAN,ROEWE MG,ROEWE

OBDSTAR ODO Master New Car Models Coveraged Comparison with OBDSTAR X300M:

Car Models Coveraged		ODO Master	X300M
Ford	Fiesta	2017-	2013-
	Focus	2019	2013-
	Transit	√	×
	KA	2018-	2005-
GM	Colorado	2018-	2010-
	Cruze	2017-	2015-
	Escalade	2018-	/
	XT6	2019
	Yukon	2017-	2014-
Chrysler	Cherokee	2018-	2015
	RAM	2018-	2011-
	Durango	2018-	2014-
Land Rover	Discovery 4	2015-	/
	Range Rover Sport	2017-	2014
VW	MQB 2012-2014.06	√	×
	MQB 2014.06-	√	√
Renault	Captur	2017-	/
	Trafic IV	2017-	/
KIA CEED	24C16	√	√
	D70F3423	√	√
	D70F3XXX	√	×
	D70F3421	√	×
	D70F35XX	√	×
	NEC	√	×
	NEC+24C16	√	×
KIA Optima	24C16	√	√
	D70F3536	√	√
	D70F3421	√	×
	D70F352X	√	×
	D70F35XX	√	×
	NEC	√	×
	NEC+24C16	√	×
Nissan	Altima 2013	√	√
	KICKS 2017-	√	×
Mitsubishi	Outlander	√	×
	Triton 2015-	√	×

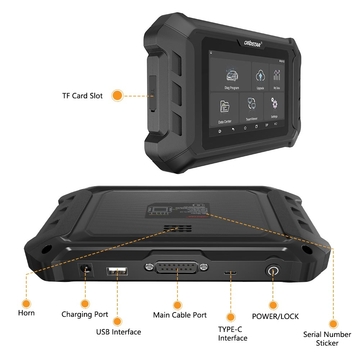

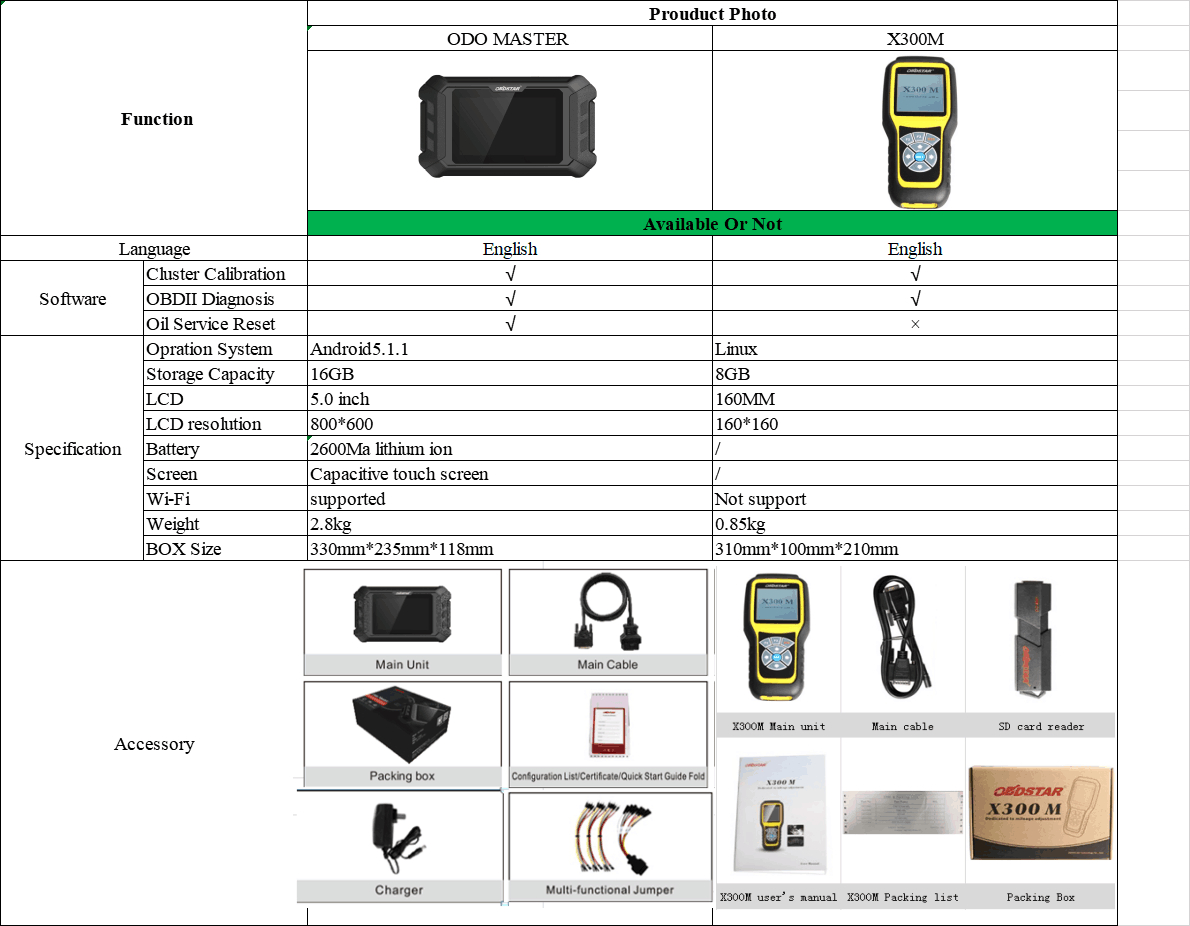

OBDSTAR ODO Master Hardware Comparison with OBDSTAR X300M:

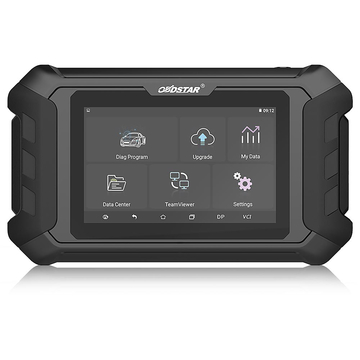

OBDSTAR ODO Master Specifications:

Operation System	Android 5.1.1
CPU	RK3128 Quad-Core ARM Cortex A7 1.2GHz
Battery	2600mA, rechargeable polymer lithium battery
Extension Memory Card	32G Micro SD (TF) card supported
Memory Capacity	16GB
Storage Capacity	32GB
LCD	5.0 inch
LCD Resolution	8000*600
Touch Screen	Capacitive touch screen
Camera	5 mega rear view camera
Wi-Fi	supported
Working Temperature	-20℃ ~ 55℃（14℉ ~ 131℉）
Storage Temperature	-20℃ ~ 70℃（-4℉ ~ 158℉）
Dimension	140mm*89*mm*18mm
Weight	About 700g

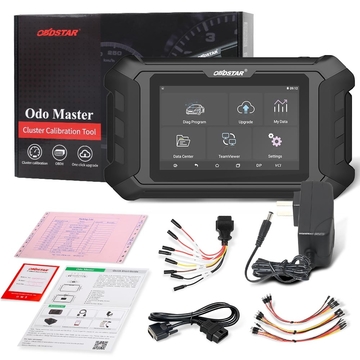

OBDSTAR ODO Master Package includes:
