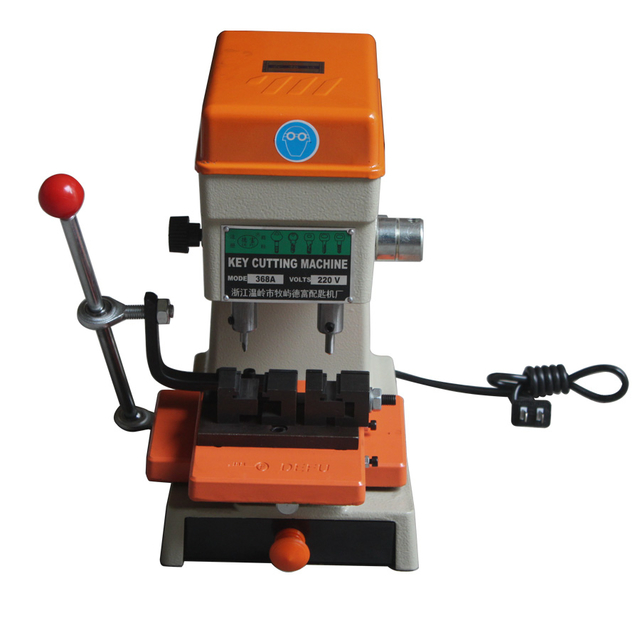

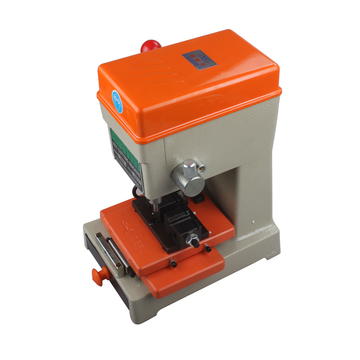

368A Key Cutting Duplicated Machine Locksmith Tools Key Machine 200W Free Shipping
368A Key Cutting Duplicated Machine Locksmith Tools Key Machine 200W Free Shipping
6%
OFF

368A Key Cutting Duplicated Machine Locksmith Tools Key Machine 200W Free Shipping

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.SL317B

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
3$ off 50$ , Code:
BOWSHINE3
$   159
$ 169 save $ 10
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 159 $ 169 save $ 10
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

    • 368A Vertical Car Household Key Copy Cutting Dulplicated Machine Locksmith Picking Tool 220V

    TOP 4 Reasons to Get 368A Key Copy Cutting Machine:

    1. Multi functional practical machine, equipped with horizontal feeding movable handle
    2. Multifunctional steel fixture, can copy various hollowness type,wave type,cylindrical key and key for multi lock and composite bead keys and some car keys,such as BMW,HONDA,Volkswagen car keys
    3. Fixture with dark key duplication service pitch line and cylinder type key assembly function (multifunctional clamp)
    4. With hardened ball bearing slide mechanism.

    386A Key Copy Cutting Machine Reviews:
    I bought a defu 368a key copy machine because really cheap and it works good on many types of key

    368A Key Copy Cutting Machine Parameters:

    Power: 220V/50hz
    Dimension size: 30 *21*35cm
    Weight: 10kg (Volume weight)
    Voltage: 110V~220v
    Frequency: 50/60Hz
    Plug Type: UK.USA.BR.CN.EU

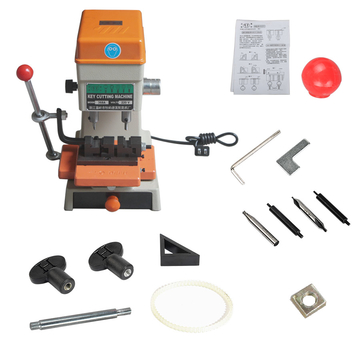

    386A Key Copy Cutting Machine Packing list:

    1pc x 368A Key Cutting Machine

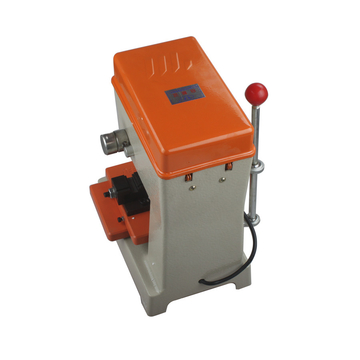

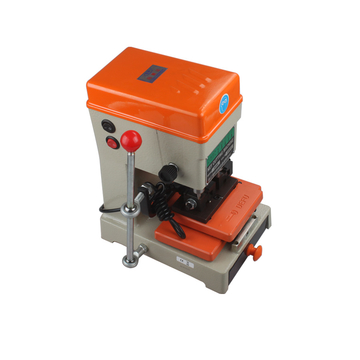

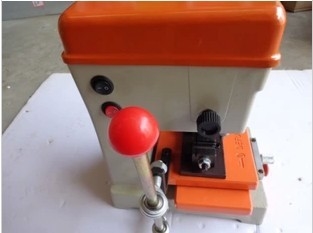

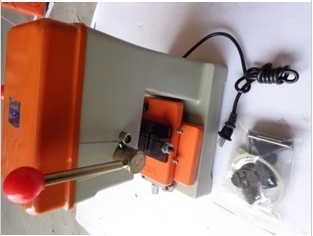

    368A Key Cutting Duplicated Machine 1368A Key Cutting Duplicated Machine 2

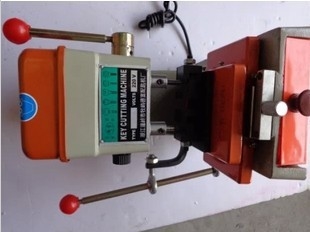

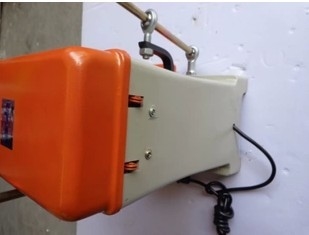

    368A Key Cutting Duplicated Machine 3368A Key Cutting Duplicated Machine 4

    How to Operate368A Key Copy Cutting Machine ?

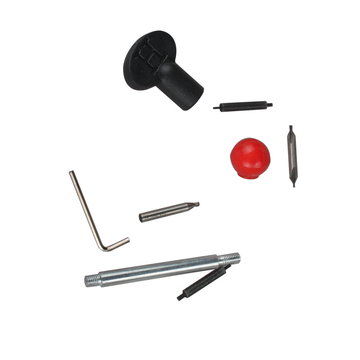

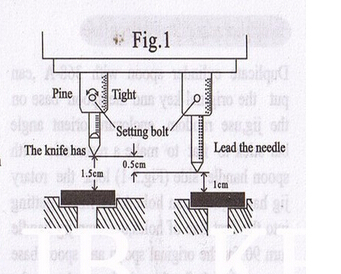

    The change of the cutter and leading needle:
    1.Use inner hexagonal wrench to unclamp the regular screw anticlockwise direction.
    2.Draw out the cutter and the lead needle downward,separate them from axis.
    3.Insert the new cutter and leading needle in the axis,when suitable for in its flexble position(Fig.1),fix the screw to lock in clockwise
    direction with inner hexagonal wrench.
    Note: Cutter and lead needle must the same angle(hole type cut) or the same diameter(wave type cut), otherwise it is inaccureate to duplicate.

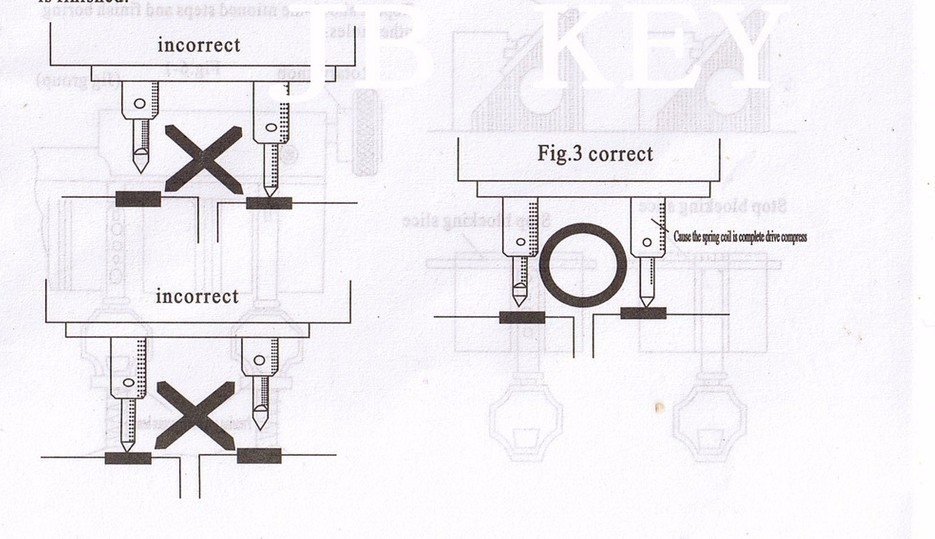

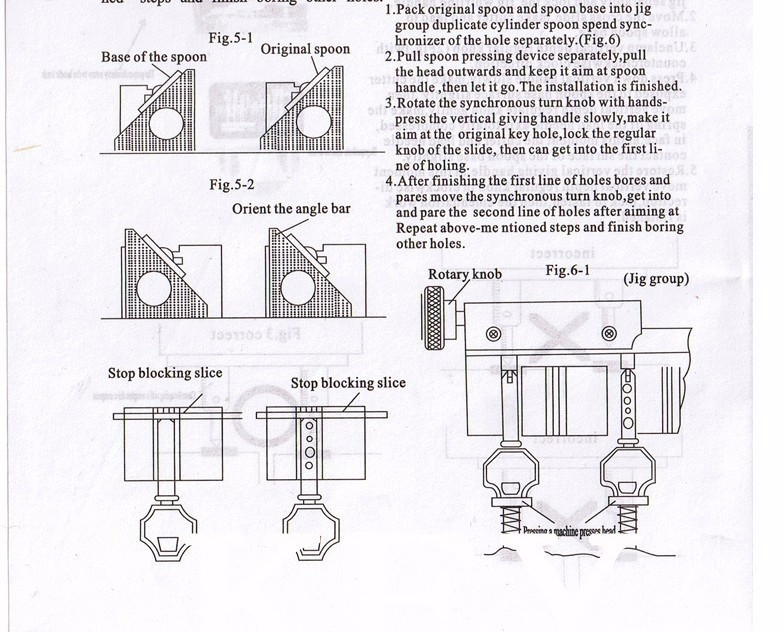

    368A Key Cutting Duplicated Machine Instruction 2
    1. Pack original spoon and spoon base into jig group dupicate cylinder spoon spend synchronizer of the hole separately(Fig.6)
    2. Pull spoon pressing device separately,pull the head outwards and keep it aim at spoon handle,then let it go.The installation is finished.
    3. Rotate the synchronus turn knob with handspress the vertical giving handle slowly,make it aim at the original key hole,lock the regular
    knob of the slide,then can get into the first listen of holing.
    4. After finishing the first line of holes bores and pares move the synchronous turn knob,get into and pare the second line of holes after
    aiming at repeat above-me ntioned steps and finish boring other holes.
    368A Key Cutting Duplicated Machine Instruction 3

    The cannelure reaming boring and paring
    As the concave nest of the key is grater than leading needle or boring and paring the oval concave nest,
    it need to carry on reaming and bore paring at this moment,when reaming is pared,the cross slide should
    move slowly in the counterclockwise clock direction(Fig.7),If the direction of the cross slide is wrong,
    it may easily to have damaged cutter.

    The cuts of the wave type cannelure:
    1.Install the leading needle,and lock the regular srews.(Fig.1)
    2.Move the verical depth buttons in clockwise direction(consults Fig.2) till the spring is totally compressed.
    3.Fetch a name card(thick about 0.2) and put it on the surface of the jig under the leading needle.
    4.Put the cutter into axis hole,hen press the vertical giveing handle slowly,make the name card happen to be
    pressed during leading needle and jig.

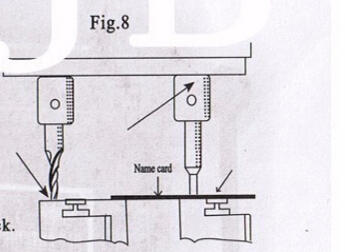

    5.Pull down cutter gently,make terminal surface of the cutter and jig surface contact ench other (Fig.8),
    then lock cutter's regular screw along the direction of the clock.

    6. Put the original key into the jig and lock the rotary handle of the jig.
    7. Place one corner of name card on the cut part of original,then press down vertical giveing handles slowly,
    press one corne of name card on the cut part of leading needle and original spoon,then lock the vertical
    depth of regular screw along the direction of the clock,at this moment the vertical moving is totally dispelled(Fig.9)

    8. Pack the jig into the base of the spoon,and move the handle of the jig,fasten it.
    9. Starting the motor,move the cross slide moves in the wrong direction,It will damage the cutter.




    368A Key Cutting Duplicated Machine Instruction 6
    Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
    Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
