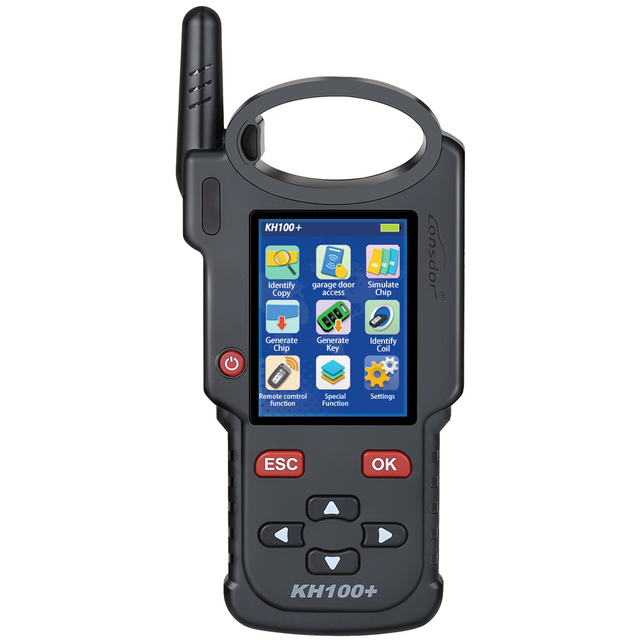

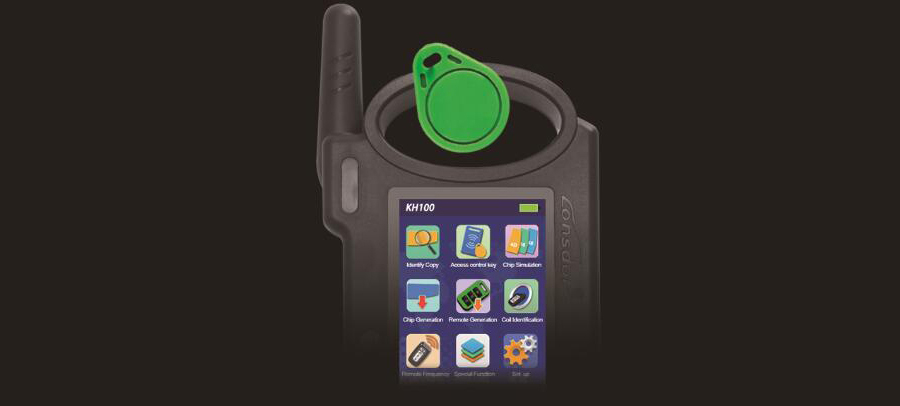

    Lonsdor KH100+ Remote Key Programmer

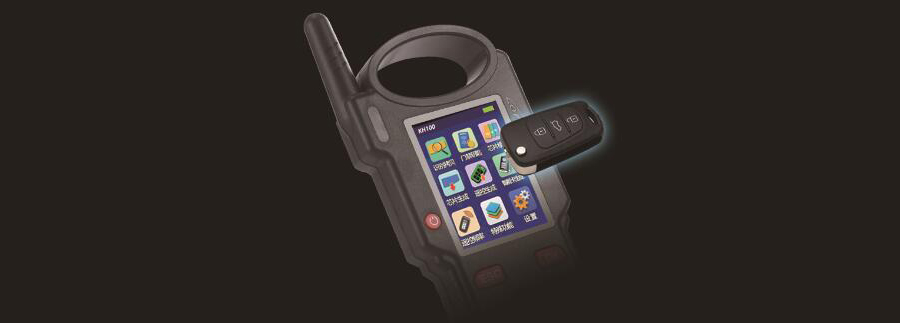

    Lonsdor KH100+ Remote Key Programmer

    Lonsdor KH100+ Highlights:

    1. Modern appearance design, in line with the operating habits of the public.
    2. Device system comes with operation instructions, easier for you to use.
    3. It covers almost all the functions of the similar products in the market.
    4. Built-in super sensor to collect data(over-range data collection).
    5. Exclusive support for 8A(H chip) generation.
    6. Built-in WIFI module, can connect to network at any time
    7. 4-pack remotes & smart key involved
    8. Handy chip holder integrated, 902MHZ supported
    9. Toyota 8A Smart Key Direct copy to Add key (Latest Update)
    10. Check Lonsdor KH100+ Vehicle List

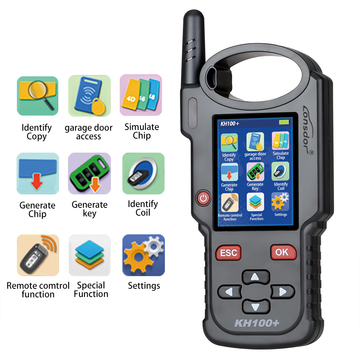

    Lonsdor KH100+ Function List:

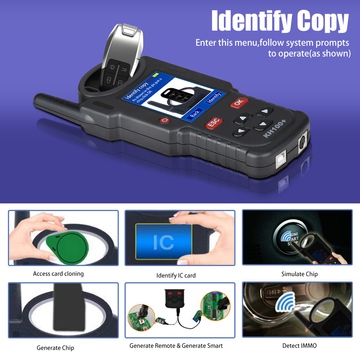

    Identify Copy
    Chip Simulation
    Remote Generation
    Remote Frequency
    Access Control Key
    Chip Generation
    Coil Identification
    Special Function

    Lonsdor KH100+ Remote Key Programmer

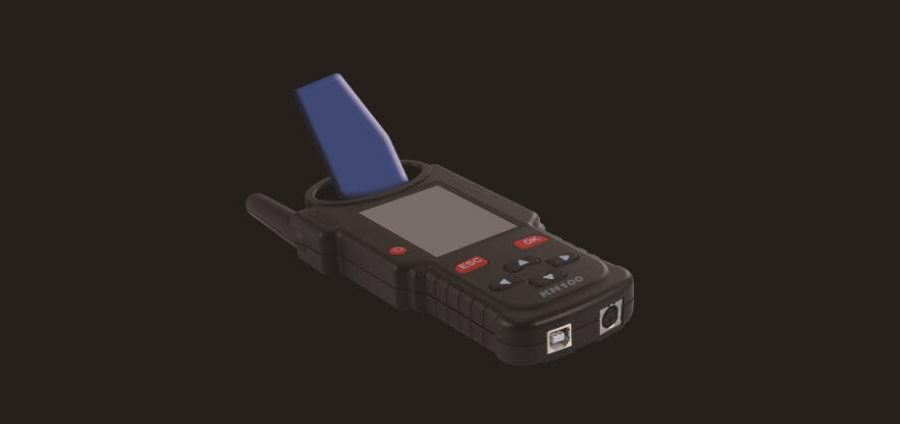

    Identify/Copy/Generate Chip:
    Multi-vendor chips supported
    Especially Toyota 8A(H) chip Our predominance

    Lonsdor KH100+ Remote Key Programmer

    Simulate Chip:
    Able to simulate 4D/46/48 chips
    With built-in super sensory data collector(no interference within 1 meter when collecting data)

    Lonsdor KH100+ Remote Key Programmer

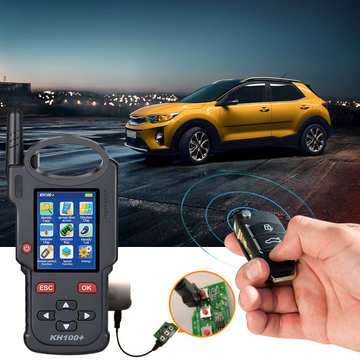

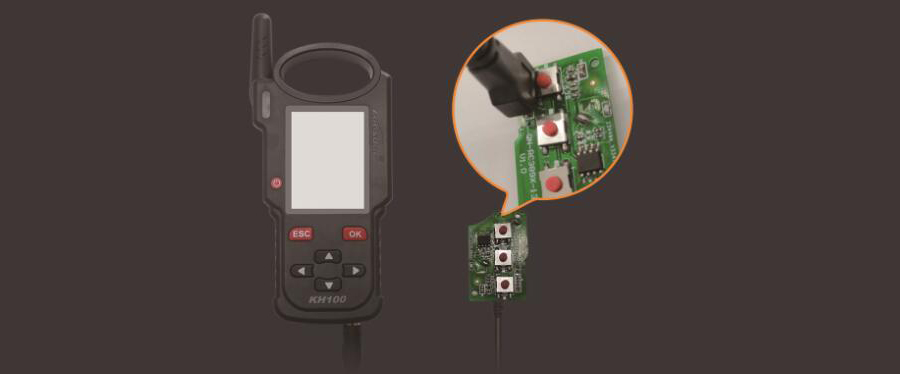

    Generate Remote/Smart key:
    Dedicated connector to generate remote/smart key Online update supported

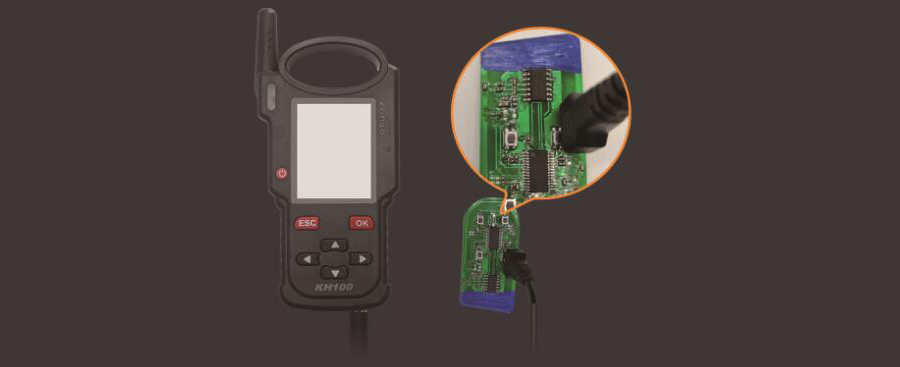

    Remote generation diagram

    Lonsdor KH100+ Remote Key Programmer

    Smart Key Generation Diagram

    Lonsdor KH100+ Remote Key Programmer

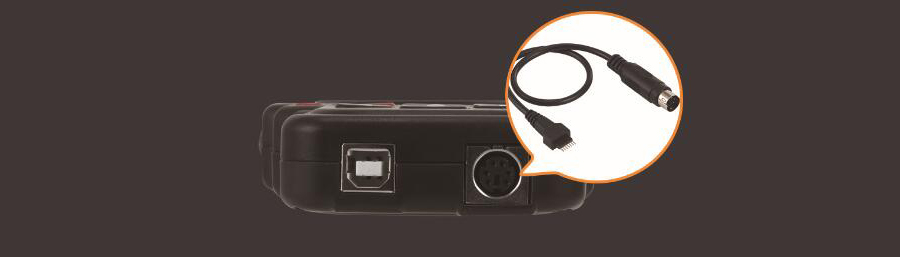

    Dedicated Connector to Generate Remote Key:PS2-7Pin OD3.5

    Lonsdor KH100+ Remote Key Programmer

    Access Control/Remote Frequency
    One-click identify and copy IC/ID cards
    Copy multi-vendor chops
    Detect remote frequency bands with high accuracy
    One click identify ID card,able to copy multi-vendor chps,at the back sensor area

    Lonsdor KH100+ Remote Key Programmer
    Lonsdor KH100+ Remote Key Programmer

    Detect Super Frequency
    Detect multiple frequency brands with high accuracy

    Lonsdor KH100+ Remote Key Programmer

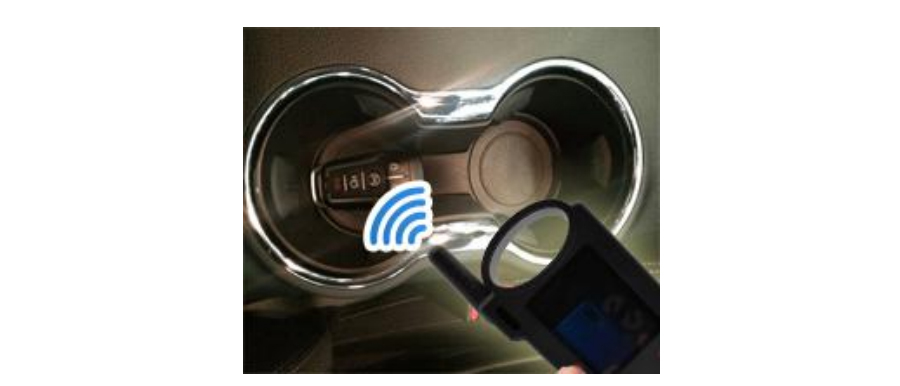

    Identify Coil:
    1) Search smart induction area Connect remote key with remote connector, Put KH100+'s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
    2) Detect IMMO Connect remote key with remote connector, Put KH100+'s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.

    Lonsdor KH100+ Remote Key Programmer

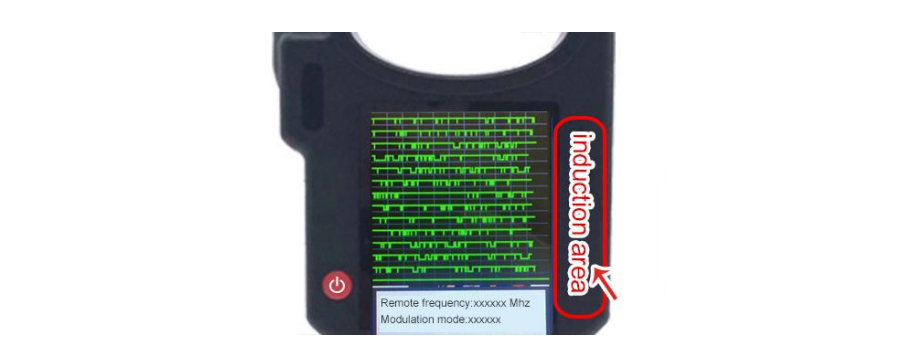

    Remote Frequency
    Enter this menu, put remote control at the device’s induction area to detect remote frequency.

    Lonsdor KH100+ Remote Key Programmer

    Lonsdor KH100+ Special Function:

    Include: detect infrared signal, unlock Toyota smart key, More functions, to be continued...

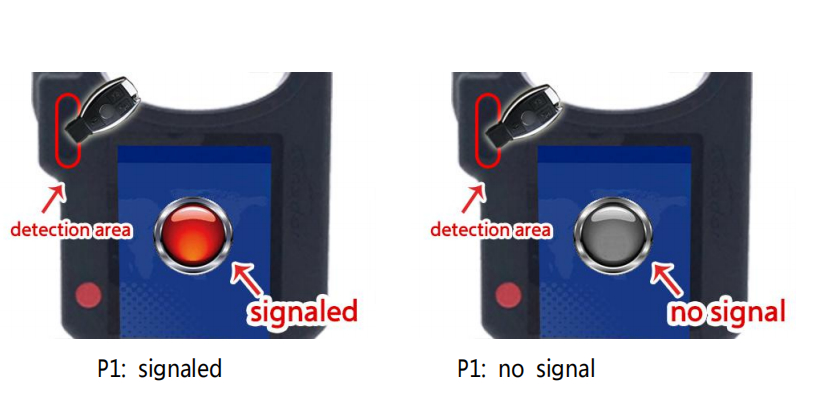

    1. Detect Infrared Signal
    Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100's screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).
    Lonsdor KH100+ Remote Key Programmer
    2. FT Smart Key
    For Toyota or Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.

    3. Unlock Toyota Smart Key/Detect Toyota Key Status
    Put in the smart key, click OK to operate.

    4. Charge Key
    For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.

    Lonsdor KH100+ Registration Guide:

    Note: After booting the device, please connect to WIFI and enter the following process.
    New User
    1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
    2) Boot the device and enter registration activation process.
    3) Input user name, password. Confirm password, cell phone number or email to obtain verification code. Then input the code to submit registration.
    4) Account registered successfully, it will take 5 seconds to bind the device.
    5) Successful registration, enter the system.

    Registered User (who has registered Lonsdor products before)
    1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
    2) Boot the device and enter registration activation process.
    3) Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
    4) Account login succeeded, it will take 5 seconds to bind the device.
    5) Successful registration, enter the system.

    In addition, users who have already registered Lonsdor's product can directly choose [registered user] to activate account.

    How to update Lonsdor KH100+:

    Enter settings menu
    Connect the device to network
    Then choose [check for updates]
    One-click for online update!

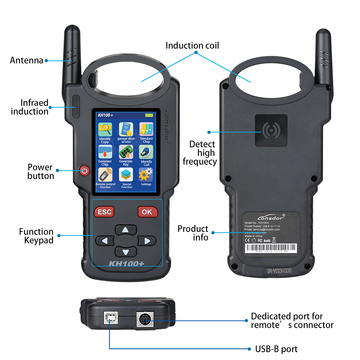

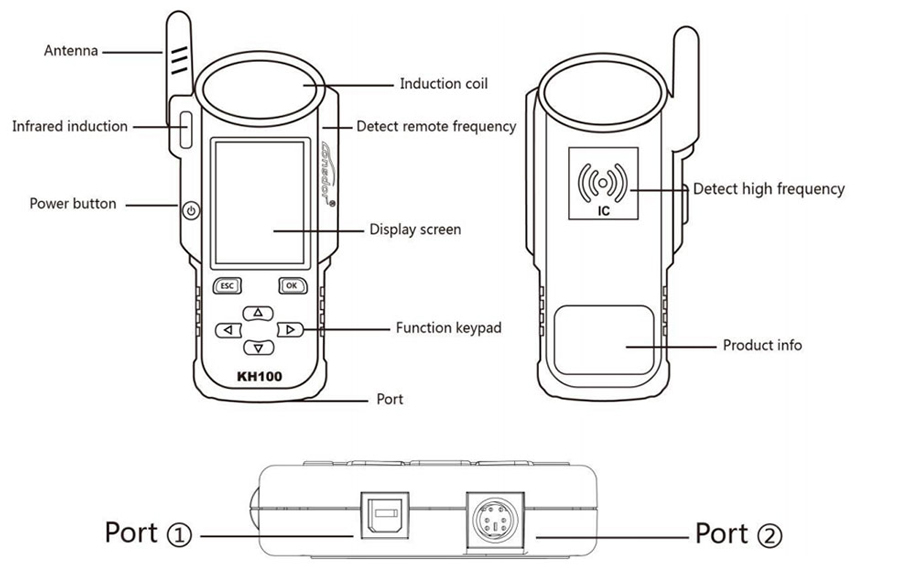

    Lonsdor KH100+ Device Components:

    Lonsdor KH100+ Remote Key Programmer
    Name Notes
    Antenna To induce simulated chip and detect ignition coil
    Display screen 2.8-inch color screen, resolution: 320X480
    Induction coil To identify, copy, generate key chip or remote, etc.
    Port 1 USB-B port
    Port 2 Dedicated port for remote’s connector
    Power button In shut-down state, tap to boot the device. In power-on state, tap to switch to power saving mode. Long press for 3s to shut down
    Remote frequency detection Put remote in this position to detect its frequency.

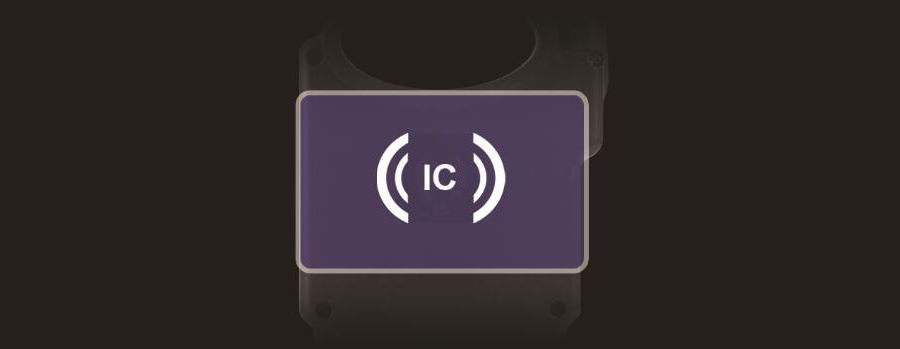

    High-frequency detection To identify and copy IC card.

    Lonsdor KH100+ Specifications:

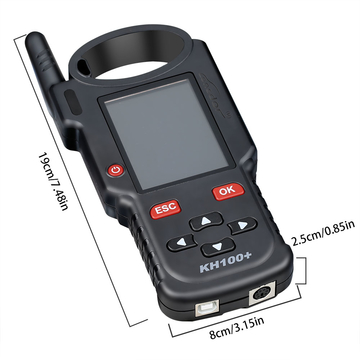

    Size: 193mm*88mm*24mm
    Screen size: 2.8 inch color screen
    Resolution: 320*240
    Battery: 3.7V 2000mA/H
    Power: 5V 500MA
    Work Temperature: -5~60℃
    USB: USB-B/Charge-Data Transfer
    Connector Port: PS2-7Pin OD3.5 7Pin,1.27 Spacing,The 2ND Pin:NC

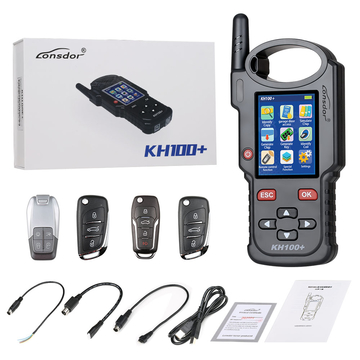

    Package includes:

    1pc x Lonsdor KH100+ Hand-Held Remote Key Programmer

    Shipping Method and Delivery Time:

    US, UK, Czech and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
    US Check: Ship from US
    UK Check: Ship from UK
    EU Check: Ship from Czech
    Russia Check: Ship from RU
    DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. If address belongs to remote area, customer will need to pay remote handling cost or we can change to ship by EMS. Please remember to leave message if you have any special requirement.
    Yanwen Express: 7-10 working days. No Tax or remote cost for European Countries.
    Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
