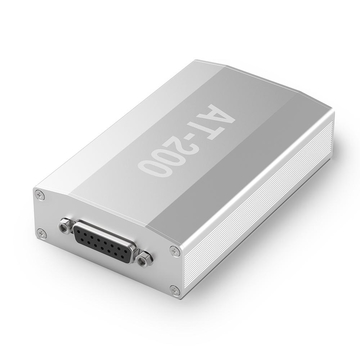

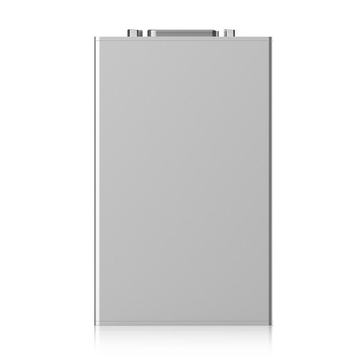

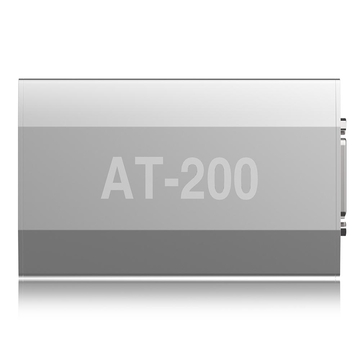

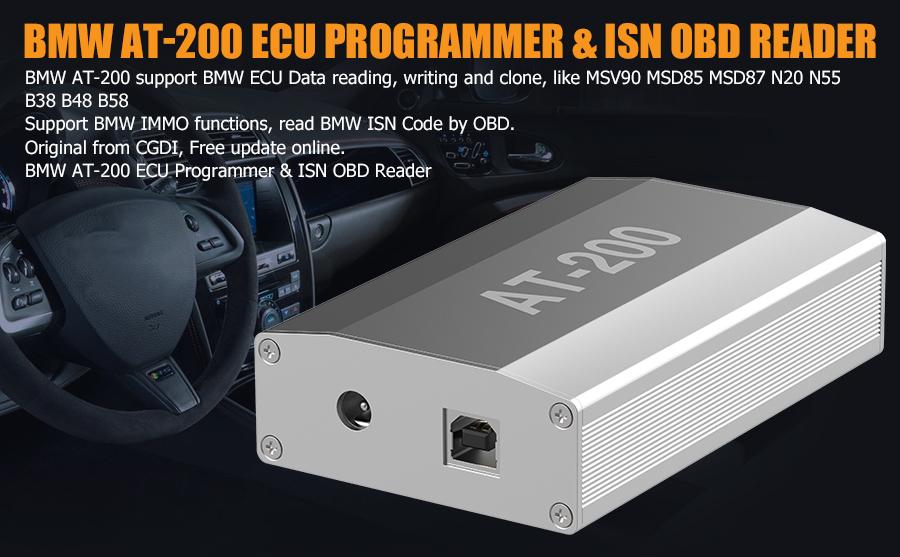

BMW AT-200 ECU Programmer & ISN OBD Reader
Top 8 Reasons to Get BMW AT-200:1. Auto ECU Programmer for repair necessary--Support BMW ECU Data reading, writing and clone.
Effectively solve the problem of replacing the second-hand computer after the damage of BMW ECU control unit, just need to read the original computer data and then clone it.

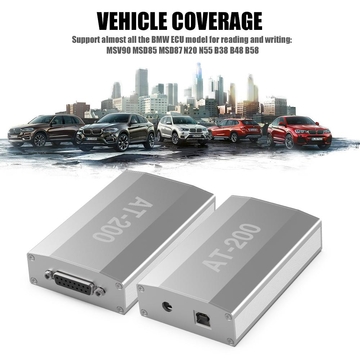

Support almost all the BMW ECU model for reading and writing: MSV90 MSD85 MSD87 N20 N55 B38 B48
Successfully make up the market for BMW ECU reading and writing equipment, save you high equipment costs.
2. Auto Locksmith necessary-Support BMW IMMO functions, Read BMW ISN Code by OBD
Quickly solve the problem for data collection of bmw all key lost.
With more stable and efficient unremovable functions.
If you want to do all key lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine, must need ISN code to program the keys.
3. Can be used together with Yanhua Mini ACDP, CGDI BMW , Xhorse VVDI, AP and other equipment to program keys, and save your money.
(The cost of similar equipment is very expensive).
4. With stable and effictive functions by professional quality test. and easy to operate and quick to start.5. Will add Mercedes-Benz 271 Audi Volkswagen 06J and other ecu types in next updates.
6. Original from CGDI and Update Online.
7. Multi-Language: English, French, Spanish, Polish, Traditional Chinese and Simplified Chinese
8.With new update, AT-200 not only support BMW ECU but also support over three thousands of ECUs like KTAG.
BMW AT-200 Update Information:
AT200 V1.8.3 Update Date: 2021-04-29
1.Added Mercedes EGS clone models:
VGS-FDCT(TC1766), VGS2-FDCT(TC1784), VGS2-FCVT(TC1766): read and write DFLASH, EXT DFLASH, PFLASH
2. Added Bosch Platform(12 types):
EDC17C73, EDC17CP05, EDC17CP18, M17.8.42, ME17.0.3, ME17.1.1, ME17.1.6, ME17.8.32, ME17.9.23, ME17.9.55, MED17.1.12, MEVD17.4.4
3. Added Bosch Boot(98 types):
EDC17C06, EDC17C08, EDC17C10, EDC17C11, EDC17C18, EDC17C41, EDC17C42, EDC17C43, EDC17C46, EDC17C47, EDC17C49, EDC17C50,
EDC17C53, EDC17C54, EDC17C55, EDC17C56, EDC17C57, EDC17C58, EDC17C59, EDC17C60, EDC17C63, EDC17C64, EDC17C66, EDC17C69 ver2,
EDC17C70, EDC17C74 ver1, EDC17C74 ver2, EDC17C76, EDC17C79, EDC17C83, EDC17C84, EDC17CP01, EDC17CP02, EDC17CP04, EDC17CP06,
EDC17CP07, EDC17CP11, EDC17CP14, EDC17CP15, EDC17CP16, EDC17CP19, EDC17CP20, EDC17CP24, EDC17CP27, EDC17CP37, EDC17CP42,
EDC17CP44, EDC17CP45, EDC17CP46, EDC17CP47, EDC17CP48, EDC17CP49, EDC17CP50, EDC17CP52, EDC17CP54, EDC17CP55, EDC17CP57,
EDC17CP58, EDC17CP60, EDC17CP62, EDC17CP68, EDC17CP74, EDC17CV41, EDC17CV42, EDC17CV44, EDC17CV52, EDC17CV54, EDC17U05,
MED17.0.1, MED17.0.7, MED17.0, MED17.1.1, MED17.1.11, MED17.1.21, MED17.1.6, MED17.1.61, MED17.2, MED17.3.1, MED17.3.3, MED17.3.4,
MED17.3.5, MED17.4, MED17.4.4, MED17.5.1, MED17.5.2, MED17.5.20, MED17.5.21 ver1, MED17.5.21 ver2, MED17.7.1, MED17.7.2, MED17.7.3.1,
MED17.7.3, MED17.7.8, MED17.8.3, MED17.8.32, MED17.9.30, MED17.9.63, MED17.9.7
4. Added ECU(BMW)read and write ISN: MEV17.2.1
5. Added ECU(BMW)read and write ISN, VIN: MEVD17.2.8
6. Added ECU(Audi, Seat, Skoda, Volkswagen(VW))read and write VIN: MED17.5
7. Added ECU(Ducati, Hyundai, Kia)read and write VIN: ME17.9.21, ME17.9.21.1, MEG17.9.21
8. Added ECU(Jaguar, Land Rover, Lincoln)read and write VIN: MED17.0
9. Fix some bugs and optimize software performance
AT200 V1.8.1 Update Date: 2020-11-21
1. Added Bosch Boot mode:
ME17.5.22, MED17.1, MED17.2, MED17.5.5, MED17.5.25, MED17.5, MEV17.2.2, MEV17.2, MEVD17.2.2, MEVD17.2.3, MEVD17.2.4, MEVD17.2.5, MEVD17.2
2. Added ECU(Audi, Bentley, Lamborghini, Porsche, Seat, Skoda, Volkswagen(VW)) read and write VIN:
ME17.5.6, MED17.1.1, MED17.1.6, MED17.5.2, MED17.5.25, EDC17CP44, EDC17C64, ME17.5.22
3. Fix some bugs and optimize software performance
AT200 V1.8.0 Update Date: 2020-9-19
1. Added Audi_VL381: read and write DFLASH, EXT DFLASH, PFLASH
2. Added BMW B48(MG1CS024 TC298TP/MG1CS201 TC298TP): read ISN; read and write EEPROM, FLASH
3. Added CONTINENTAL/SIEMENS Boot mode: Backup Data and Restore Data
(3.1) BMW: MSV80, MSV90, MSD80, MSD81, MSD85, MSD87
(3.2) Mercedes: SIM271DE, SIM271KE
4. Added 06J engine boot mode: read password, read and write EEPROM, FLASH, Ext FLASH
(4.1) ME17.2.1, MED17.1.6, MED17.5.2
5. Added Bosch number search button: enter Bosch number to jump to the system
6. Fix some bugs and optimize software performance
AT200 V1.7.4 Update (2020-8-13)
1. Add Polish language
2. Add DQ200 (TC1766/TC1784): Read and write DFLASH, EXT DFLASH, PFLASH (Need authorization)
3. Add ST10 boot mode (Need authorization)
(3.1) Add M7 (ST10F275) boot mode: read and write EEPROM, read and write FLASH
(3.2) Add ME7.8.8 (ST10F275) boot mode: read and write EEPROM, read and write FLASH
4. Add BOSCH TC series engine file verification (you can choose whether to verify the correction and write the file)
5. Add ECU (BMW / Mini) to read and write ISN, VIN: EDC17C06
6. Add 'Bosch Number Search' button
7. Fix the problem of reading and writing external FLASH of BOSCH TC series ecu
8. Fix TC1728 read and write issues
9. Fix some bugs and optimize software performance
10. Update AT200 Chinese help file
11. Volkswagen Bosch MED17 series ecu clone
12. Volkswagen 06J ecu clone
13. Solve the automatic data verification of Bosch ecu

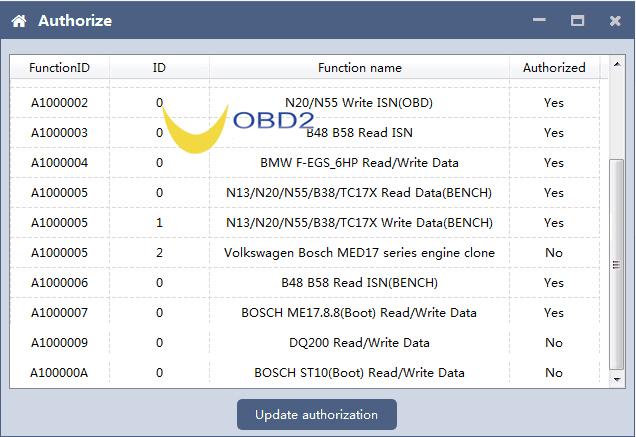

Kindly note these authorizations are PAID service:
Volkswagen Bosch MED17 Series ECU Clone: 199USD. Buy this one Get Free DQ200 Read/Write Data and BOSCH ST01(Boot) Read/Write Data.
If you need
DQ200 Read/Write Data only, price $69.
AT200 V1.7.3 Update (2020-06-08)
1. Add ME17.8.8 (TC1728)boot mode: Identify read password, read and write Dflash/Pflash (Need to authorize)
2. Add ECU (BMW/Mini)read and write ISN, Vin: EDC17CP02
3. Add "Check Update" Button
4. Fix some bugs and optimize software performance.
AT200 1.7.1 Update (2020-04-24)
1.Add BMW B48 B58 Read ISN,read & write EEPROM,FLASH
2.Add the ECU type of TC1796
3.Add EDC17C50 Read ISN
AT200 V1.7.0 Update (2020-03-20)Support online update to newest version.
1. Software interface optimization and upgrading:

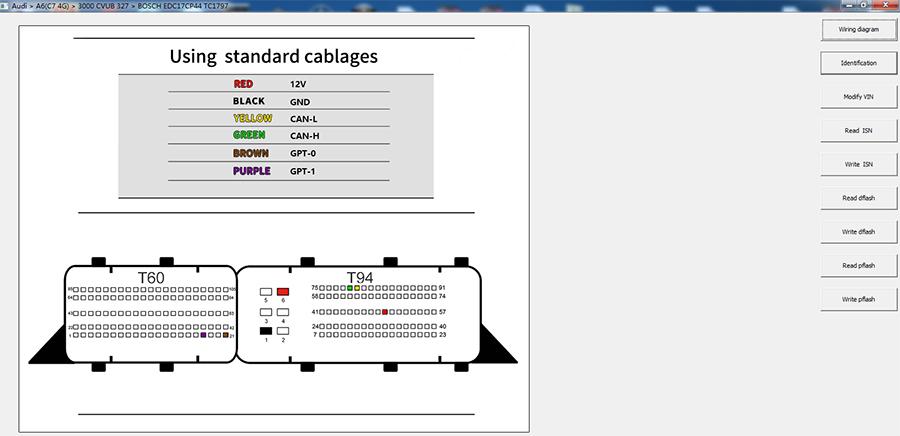

1.1. Wiring diagram display
1.2. Font size
1.3. Menu display (classified display, consolidated display)
1.4. Added search function
1.5. Added help button
2. Added the engine type:
2.1. Added TC1766: Can-Am, KTM, Piaggio;
2.2. Added TC1767: Lincoln;
2.3. Added TC1797: Artec, Fendt, New Holland;
3. Repair some Bosch engine write abnormal problems
4. Optimized car diagram:BOSCH EDC17C10, BOSCH EDC17C41, BOSCH EDC17CP45, BOSCH EDC17CP48 ver2, BOSCH EDC17CP48, BOSCH MED17.9.3
5. Added Traditional Chinese language
AT200 V1.6.1 Update (2019-11-19):
1. Added MSV80 read ISN, write ISN, Backup Data and Restore Data
2. Added MSD80/D81/D85/D87/MSV90 write ISN
3. Added the engine type of the TC1766:
Alfa Romeo, Audi, BMW, Citroen, Dacia, Dodge, Ford, Hyundai, Indian, Kia, Lada, Lancia, Nissan, Mini, Opel, Peugeot, Polaris, Renault,
Saab, Sea Doo, Seat, Skoda, Subaru, Suzuki, Toyota, UAZ, Vauxhall, Volkswagen (VW)

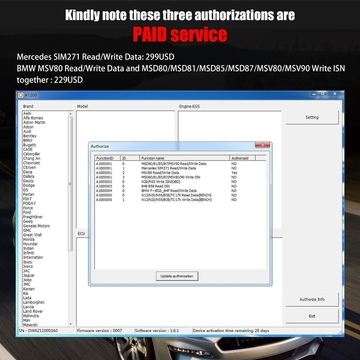

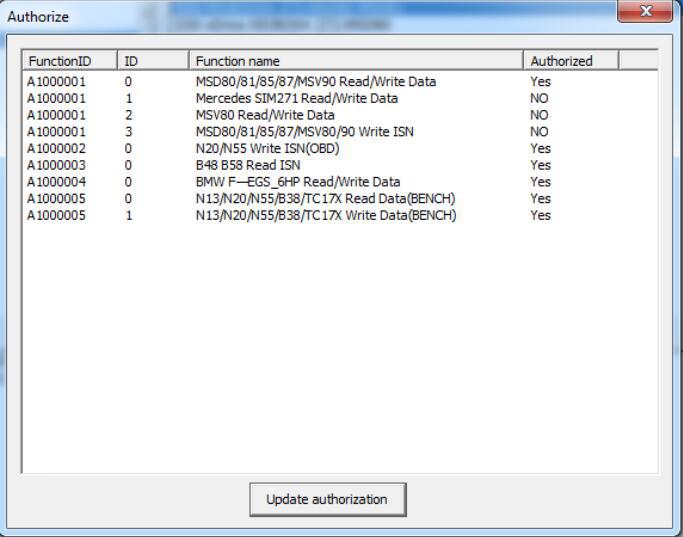

Kindly note these three authorizations are PAID service:Mercedes SIM271 Read/Write Data: 299USD
BMW MSV80 Read/Write Data and MSD80/MSD81/MSD85/MSD87/MSV80/MSV90 Write ISN together : 229USD
AT-200 Stunning V1.5.0 Upgrade (Set 11th, 2019)
AT200 V1.5.0 Released Update Online
1. Add MSD80,MSD81 Read/Write ISN
2. Add TC1793,TC1793S Engine diagram
4. AT200 add 432 ECU models
AT-200 Stunning V1.4.0 Upgrade (Aug 27th, 2019)
1. Upgrade B38 read and write ISN copy clone
2. Upgrade 1272 car series + ECU
3. Support Mercedes-Benz/BMW/Audi/Off-road vehicles/Porsche and more
4. Support MSN90/N20/N55/N13/MSD85/MSD87, BMW 7 Series 6HP VGS clone and BWM ISN code reading, including B48 B58 F Series/N20 /N55 /B58 /MSV90
BMW AT200 Newest Update Note v1.3.1(08.21.2019)
Support data cloning of 1272 different ECU
Support Mercedes Benz, BMW, Audi,landrover,porshe etc .
Support data clong of MSN90 N20 ,N55,N13,MSD85 MSD87, BMW7 series 6 HP VGS, and suppoet ISN code reading of BMW including B48 F series, N20, N55, B58, MSV90,B48 etc. The best price and amazing cost effective.
BMW AT-200 Software Latest Version: V1.3.0!!!
1. Add function for N13 N20 N55 Platform mode read ISN;
2. Optimized B48 read ISN function;
3. EGS_6HP Increased programming status judgement.

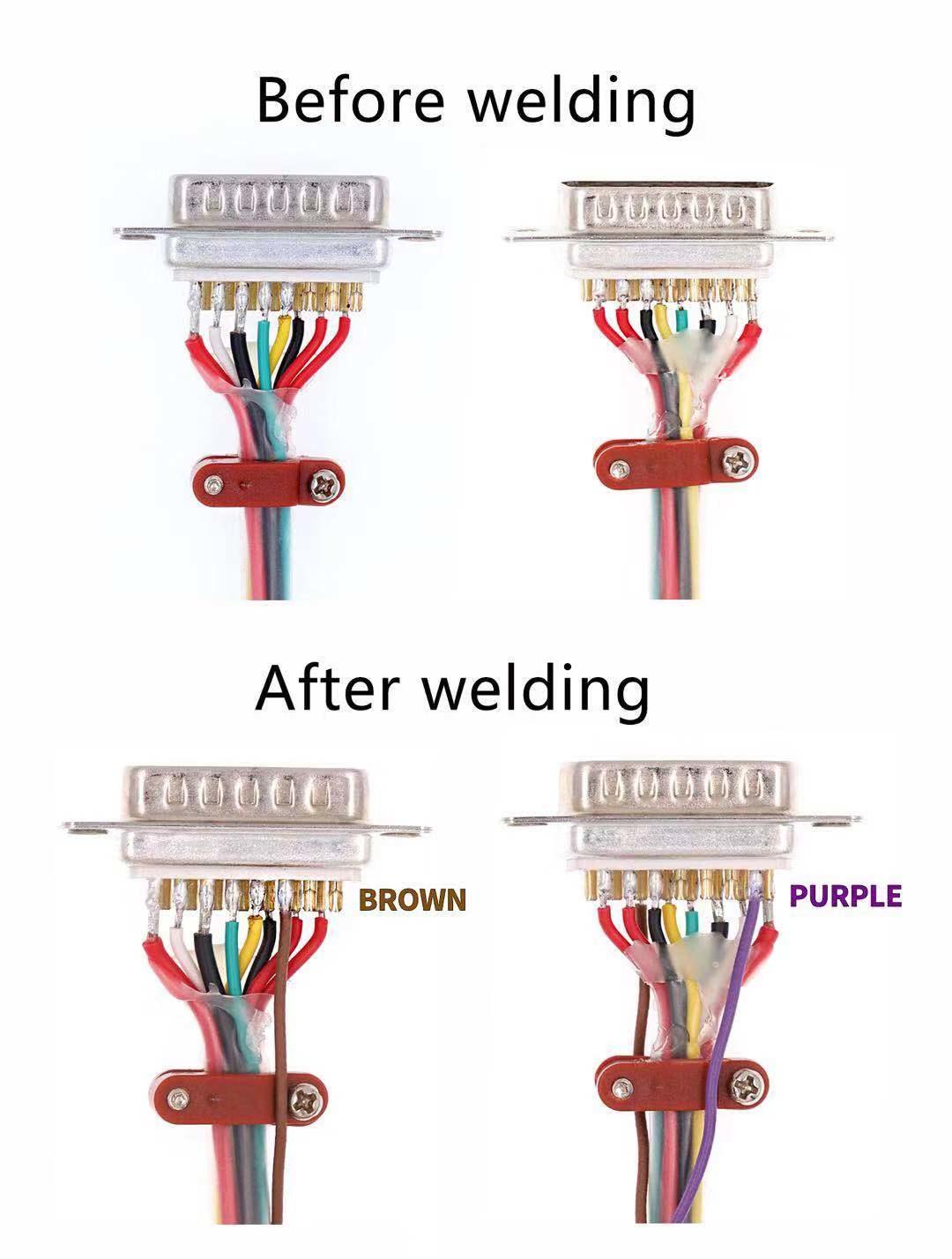

When you update BMW AT-200 to V1.3.0 and newer, please change the diagram connection as below:

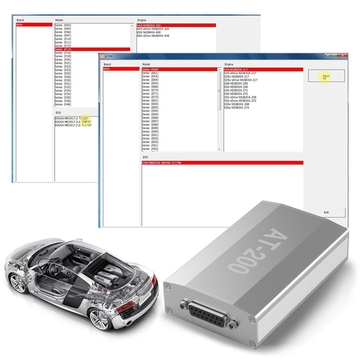

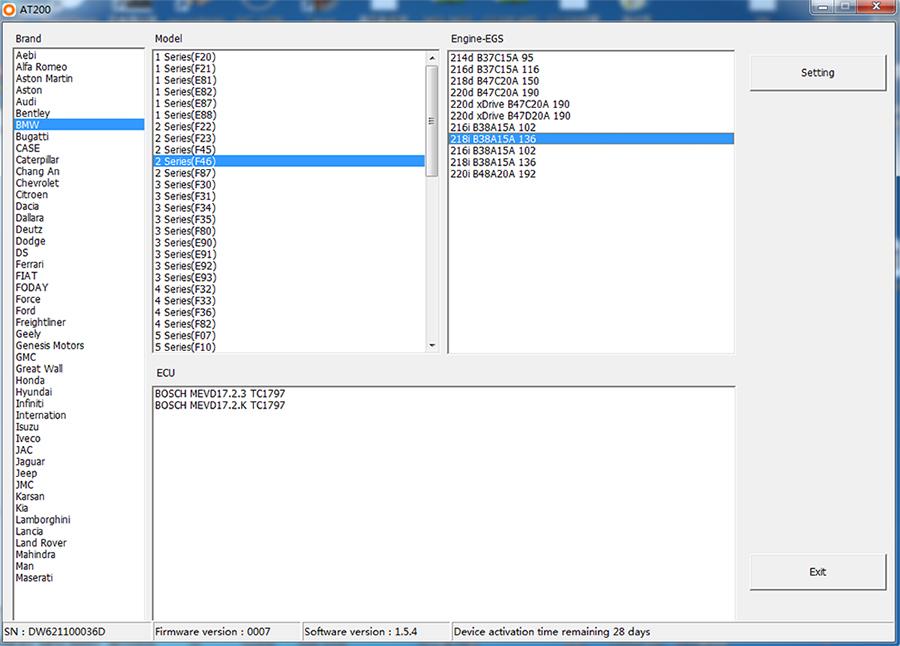

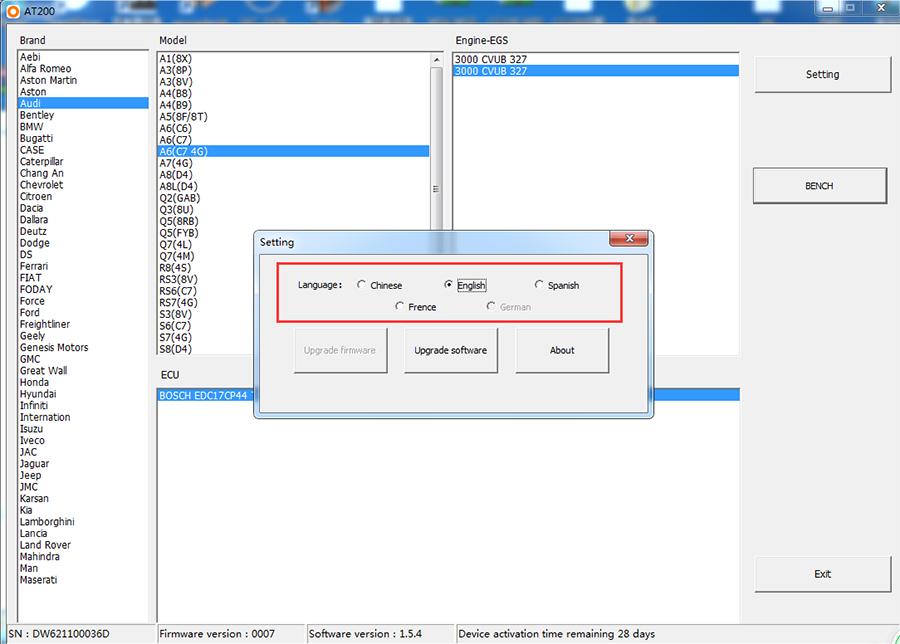

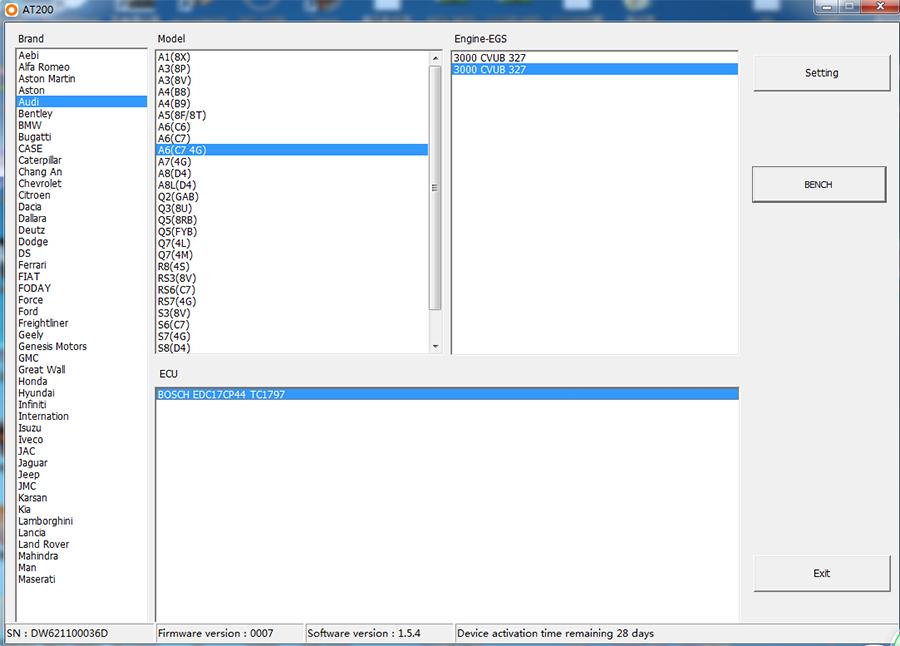

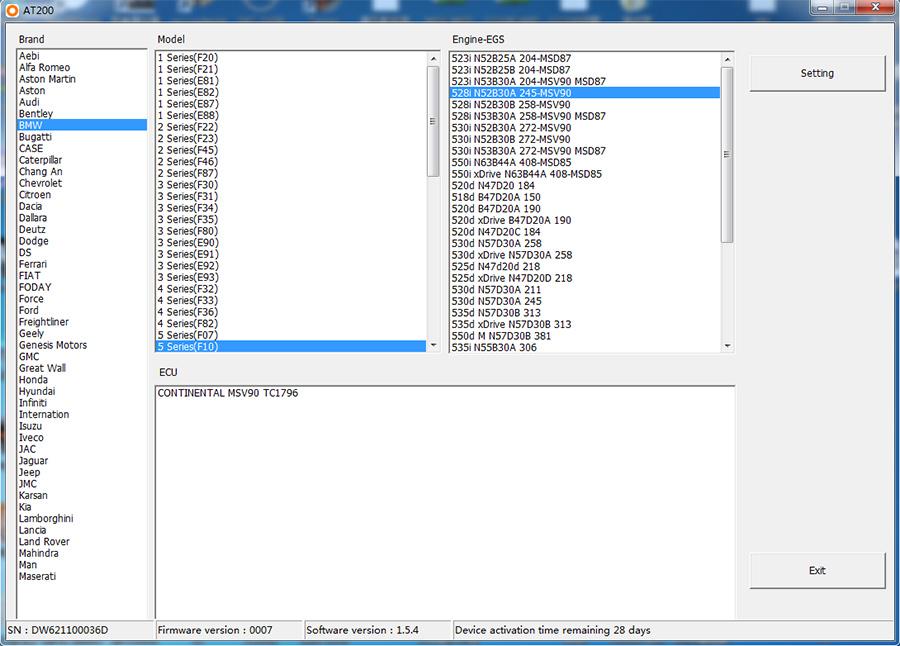

BMW AT-200 Software Display:
BMW AT-200 Support ECU List with V1.5.0 Version:
TC1793 |
|
|
|
|
|
Car |
Name |
Series |
Engine |
ECU |
ECU |
Alfa Romeo |
4C |
960 |
1750 TBI 960.A1.000 240 |
BOSCH MED17.3.3 |
|
|
Giulia |
952 |
2900 Twin Turbo 670050436 510 |
BOSCH MED17.3.5 |
|
|
|
|
2200 Multijet 55266388 150 |
BOSCH EDC17C69 ver3 |
|
|
|
|
2200 MUltijet 55266388 136 |
BOSCH EDC17C69 ver3 |
|
|
|
|
2200 MUltijet 55266388 209 |
BOSCH EDC17C69 ver3 |
|
|
Giulietta |
940 |
1750 TBI 960.A1.000 240 |
BOSCH MED17.3.3 |
|
|
|
|
2000 JTDM 2 940.B4.000 175 |
BOSCH EDC17C69 ver1 |
|
|
Stelvio |
- |
2900 Twin Turbo 670050436 510 |
BOSCH MED17.3.5 |
|
Aston |
Vantage |
IV |
4000 M177 510 |
BOSCH MED17.7.5 |
|
Audi |
A3 |
8P |
1400 TFSI e-tron CUKB 150 |
BOSCH MED17.1.21 |
|
|
A4 |
B9 |
2000 TFSI quattro CPMB 220 |
BOSCH MED17.1.10 |
|
|
|
|
2000 TFSI quattro flexible fuel CPMB 220 |
BOSCH MED17.1.10 |
|
|
|
|
2000 TFSI 190 |
BOSCH MED17.1.10 |
|
|
A5 |
8F/8T |
2000 TFSI quattro CPMB 220 |
BOSCH MED17.1.10 |
|
|
|
|
2000 TFSI quattro flexible fuel CPMB 220 |
BOSCH MED17.1.10 |
|
|
A6 |
C7 |
3000 TDI 218 |
BOSCH EDC17CP54 |
|
|
|
|
3000 TDI quattro 218 |
BOSCH EDC17CP54 |
|
|
A7 |
4G |
3000 TDI 313 |
BOSCH EDC17CP54 |
|
|
|
|
3000 TDI Ultra |
BOSCH EDC17CP54 |
|
|
Q5 |
8RB |
2000 TFSI quattro CPMB 220 |
BOSCH MED17.1.10 |
|
|
|
|
2000 TFSI quattro flexible fuel CPMB 220 |
BOSCH MED17.1.10 |
|
|
Q7 |
4M |
3000 TDI CRTD 272 |
BOSCH EDC17CP54 |
|
|
|
|
3000 TDI Ultra CRTE 218 |
BOSCH EDC17CP54 |
|
|
|
|
3000 TDI Ultra CZZA 218 |
BOSCH EDC17CP54 |
|
BMW |
all bikes |
- |
all engines |
BOSCH ME17.2.4 |
|
|
1 |
F20 |
116i B38B15A 109 |
BOSCH MEVD17.2.3 |
|
|
|
|
118i B38B15A 170 |
BOSCH MEVD17.2.3 |
|
|
|
F21 |
116i B38B15A 109 |
BOSCH MEVD17.2.K |
|
|
|
|
118i B38B15A 170 |
BOSCH MEVD17.2.K |
|
|
2 |
F22 |
218i B38B15A 136 |
BOSCH MEVD17.2.3 |
|
|
|
|
220i B48A20A 192 |
BOSCH MEVD17.2.3 |
|
|
|
|
218i B38B15A 136 |
BOSCH MEVD17.2.3 |
|
|
|
|
220i B48A20A 192 |
BOSCH MEVD17.2.3 |
|
|
|
F23 |
218i B38B15A 136 |
BOSCH MEVD17.2.K |
|
|
|
|
220i B48A20A 192 |
BOSCH MEVD17.2.K |
|
|
|
|
218i B38B15A 136 |
BOSCH MEVD17.2.K |
|
|
|
|
220i B48A20A 192 |
BOSCH MEVD17.2.K |
|
|
|
F45 |
216i B38A15A 102 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
|
218i B38A15A 136 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
|
225xe B38A15A 224 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
|
220i B48A20A 192 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
F46 |
216i B38A15A 102 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
|
218i B38A15A 136 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
|
220i B48A20A 192 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
3 |
F30 |
320d 184 |
BOSCH EDC17C76 |
|
|
|
|
320d xDrive 184 |
BOSCH EDC17C76 |
|
|
|
|
318i B38B15A 136 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
F31 |
320d 184 |
BOSCH EDC17C76 |
|
|
|
|
320d xDrive 184 |
BOSCH EDC17C76 |
|
|
|
|
318i B38B15A 136 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
F34 |
320d 184 |
BOSCH EDC17C76 |
|
|
|
|
320d xDrive 184 |
BOSCH EDC17C76 |
|
|
4 |
F32 |
418i B38B15A 136 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
F36 |
418i B38B15A 136 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
5 |
F07 |
535d 258 |
BOSCH EDC17C76 |
|
|
|
|
535d xDrive 258 |
BOSCH EDC17C76 |
|
|
|
F10 |
535d 258 |
BOSCH EDC17C76 |
|
|
|
|
535d xDrive 258 |
BOSCH EDC17C76 |
|
|
|
F11 |
535d 258 |
BOSCH EDC17C76 |
|
|
|
|
535d xDrive 258 |
BOSCH EDC17C76 |
|
|
X1 |
F48 |
16i sDrive B38A15A 136 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
|
|
25i xDrive B48A20B 231 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
|
X3 |
F25 |
20d xDrive N47D20C 184 |
BOSCH EDC17C76 |
|
|
X5 |
F15 |
30d xDrive N57D30A 258 |
BOSCH EDC17C76 |
|
|
i |
I12 |
i8 B38K15A 362 |
BOSCH MEVD17.2.3 |
BOSCH MEVD17.2.K |
Chang An |
SC7143C |
- |
1400 Turbo K14C 140 |
BOSCH MED17.9.63 |
|
Citroen |
C4 |
B71 |
1600 BlueHDi BHZ 120 |
BOSCH EDC17C60 |
|
|
C4 Cactus |
I |
1600 HDi 110 |
BOSCH EDC17C60 |
|
|
C4 Grand Picasso |
B78 |
1560 BHZ 120 |
BOSCH EDC17C60 |
|
|
|
|
1600 THP 5GY(EP6FDTM) 163 |
BOSCH MED17.4.4 |
|
|
|
|
1600 THP 5GZ(EP6FDT) 165 |
BOSCH MED17.4.4 |
|
|
C4 Picasso |
B78 |
1560 BHZ 120 |
BOSCH EDC17C60 |
|
|
DS3 |
A55 |
1600 BlueHDi BHZ 120 |
BOSCH EDC17C60 |
|
|
|
|
1600 THP 5GZ(EP6FDT) 165 |
BOSCH MED17.4.4 |
|
|
|
A56 |
1600 BlueHDi BHZ 120 |
BOSCH EDC17C60 |
|
|
DS4 |
B75 |
1600 BlueHDi BHZ 120 |
BOSCH EDC17C60 |
|
|
|
|
1600 HDi 90 |
BOSCH EDC17C60 |
|
|
|
|
1600 HDi 110 |
BOSCH EDC17C60 |
|
|
DS5 |
B81 |
1600 BlueHDi BHZ 120 |
BOSCH EDC17C60 |
|
|
|
|
1600 HDi 90 |
BOSCH EDC17C60 |
|
|
|
|
1600 HDi 110 |
BOSCH EDC17C60 |
|
|
|
|
1600 THP 5GZ(EP6FDT) 165 |
BOSCH MED17.4.4 |
|
DS |
DS3 |
A55 |
1600 BlueHDi BHZ 120 |
BOSCH EDC17C60 |
|
|
DS4 |
B75 |
1600 BlueHDi BHZ 120 |
BOSCH EDC17C60 |
|
|
DS5 |
B81 |
1600 BlueHDi BHZ 120 |
BOSCH EDC17C60 |
|
Dallara |
Stradale |
I |
2300 YVD 400 |
BOSCH MED17.3.5 |
|
FIAT |
500 X |
334 |
1600 Multijet 2 120 |
BOSCH EDC17C69 ver2 |
|
|
Doblo |
334 |
1600 Multijet 2 263.A8.000 105 |
BOSCH EDC17C69 ver2 |
|
|
Toro |
334 |
2000 16v MJET 4x4 ECD 170 |
BOSCH EDC17C69 ver2 |
|
|
|
334 |
2000 Multijet ECD 170 |
BOSCH EDC17C69 ver2 |
|
Ferrari |
488 |
I |
3900 V8 GTB F154CB 670 |
BOSCH MED17.3.5 |
|
|
|
|
3900 V8 Spider F154CB 670 |
BOSCH MED17.3.5 |
|
|
California T |
I |
3900 V8 Twin Turbo Turbo F154CB 560 |
BOSCH MED17.3.5 |
|
Ford |
B-Max |
II |
1500 TDCi XUJA 75 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XUJB 75 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVJA 95 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVJB 95 |
BOSCH EDC17C70 |
|
|
C-Max |
DXA |
1500 TDCi ECOnetic AEDA 105 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XWDA 120 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XWDB 120 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XXDA 95 |
BOSCH EDC17C70 |
|
|
Ecosport |
JK8 |
1500 TDCi XVJD 120 |
BOSCH EDC17C70 |
|
|
Fiesta |
Jx8 |
1500 TDCi XUJA 75 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XUJB 75 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVJA 95 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVJB 95 |
BOSCH EDC17C70 |
|
|
Focus |
DY |
1500 TDCi ECOnetic AEDA 105 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XWDA 120 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XWDB 120 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XXDA 95 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVDC 95 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVDD 95 |
BOSCH EDC17C70 |
|
|
Mondeo |
V |
1500 TDCi UGCC 120 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi ECOnetic XUCA 120 |
BOSCH EDC17C70 |
|
|
Tourneo |
- |
1500 TDCi XUCC 75 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XUCD 75 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XUGA 75 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVCA 95 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVCB 95 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVCC 95 |
BOSCH EDC17C70 |
|
|
|
|
1500 TDCi XVGC 101 |
{{reply_items.text}}By {{reply_items.author}}
