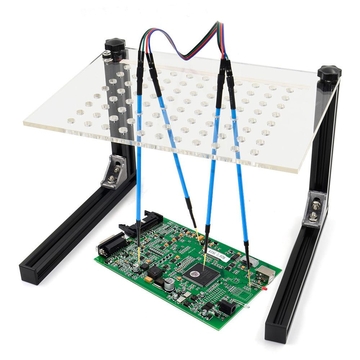

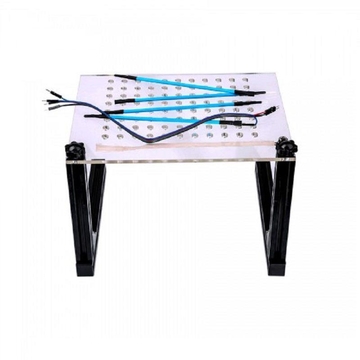

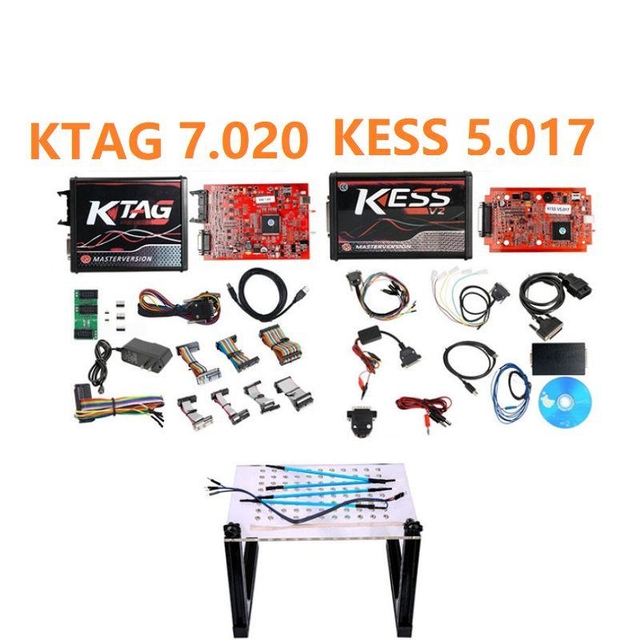

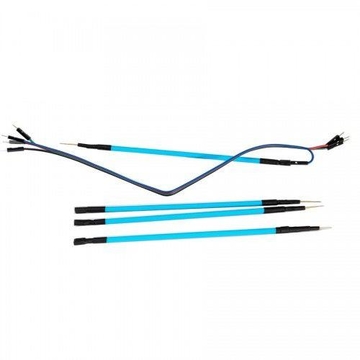

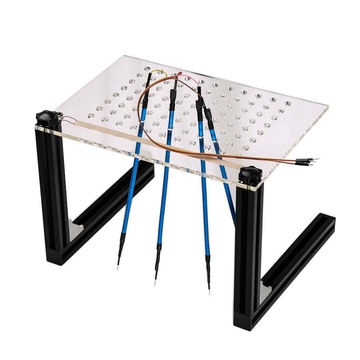

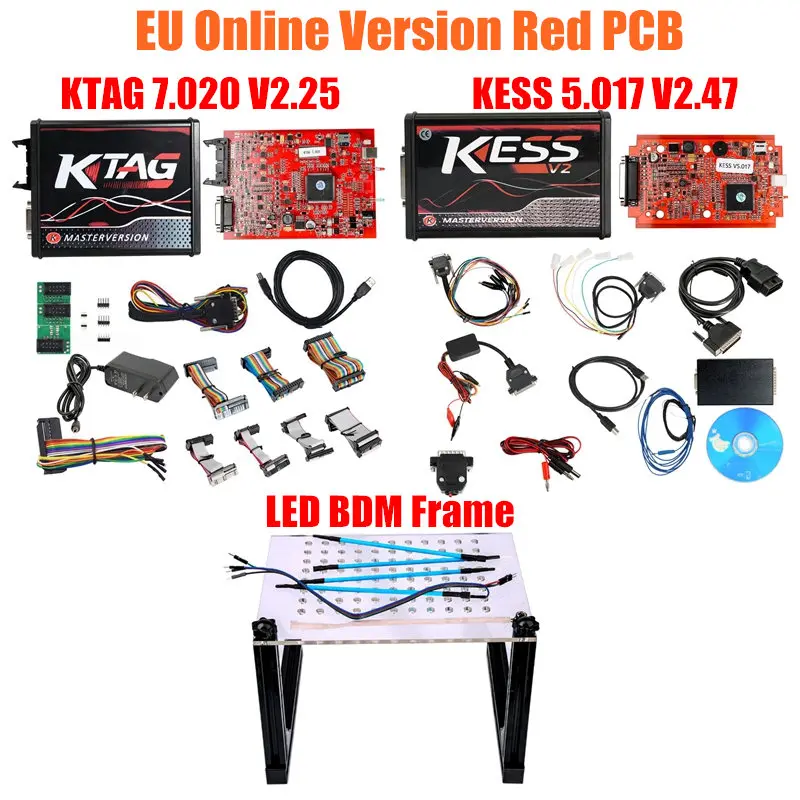

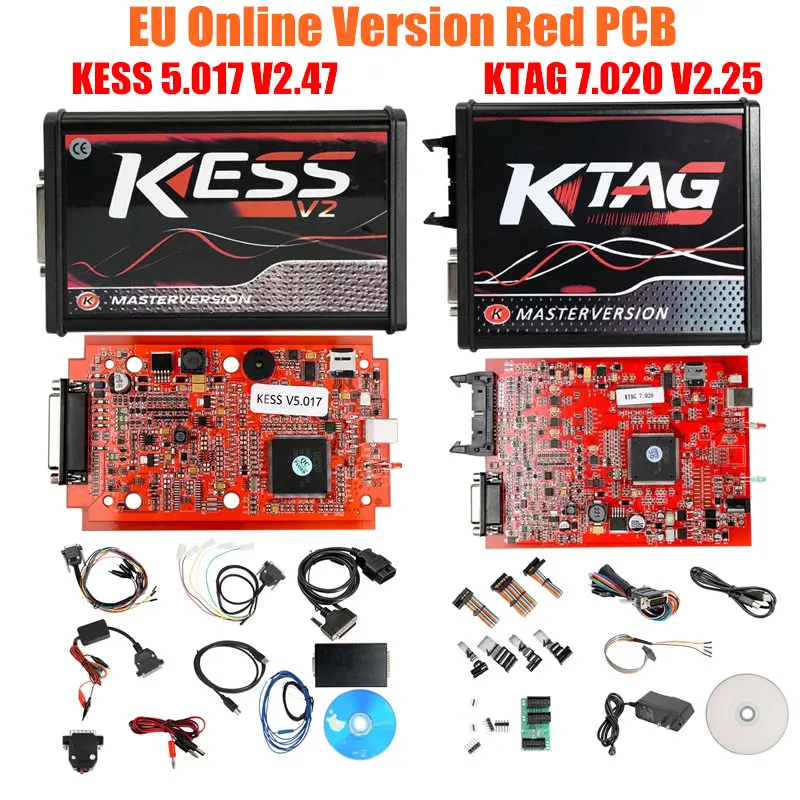

(ES/RU Ship)KESS V5.017 RED+KTAG V7.02 RED+LED BDM Frame

What differences between KESS 5.017 and KTAG7.020?

If you mainly want to work for 24V truck and tractor , Ktag V7.020 is more suitable for you !

1. Different Connection Way :

For KESS V5.017,it can read and write ECU via OBD2 Cable Directly for most vehicles,easy to operate.

For KTAG V7.020,it read and write ECU via TRICORE or BDM Or Other Mode with special cable, the software will guide you how to operate.

2. Different Vehicle Coverage :

For example: KESS 5.017 and Ktag v7.020 all can work For Most for Toyota Denso ECU Protocol,But just K-TAG 7.020 can work For Toyota Hilux kun26 very well !

KTAG V7.020 can support much more truck/tractor/motorcycle than KESS V5.017 !

For Some cars. KESS V5.017 just can read it. But KTAG V7.020 can read and write it.

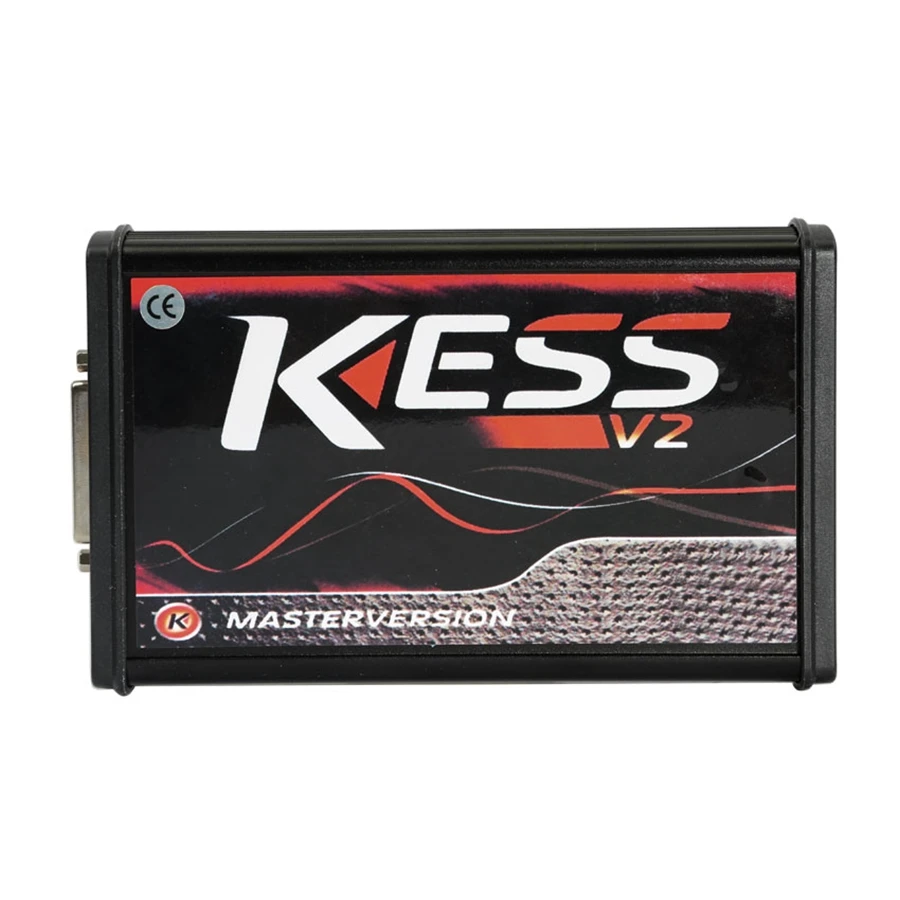

KESS V2 V5.017 Newest V2.47 EU Red PCB Online Version No Tokens Limited Add More Protocols OBD2 Manager Tuning Kits ECU Programming Tool

KESS V2 HW5.017 New Added Features:

1. Kess 5.017 With NEW K-Suite 2.47 with exactly 7400 Vehicles added. supports More 140 Protocols. KESS 5.017 support bike/car/truck/tractor!

2.Online Version Kess V2 Firmware V5.017 Support Online Service by interent connection and and it will not damage the hardware.No worry locked any more.

3. No Token Limitation,no worry about tokens, you can use Kess V5.017 for lifetime

4. Cover all major brands and protocols including Line, KAN, EDC17 and MED17 and for Ford J1850.

5. Support cars/trucks/tractors/bikes! KESS V2 supports vehicles accroding to engine. So V5.017 KESS V2 can support new vehicles!

6. Kess V2 V5.017can read and write ECU via OBD2 port directly, no need to disassemble ECU from the car, easy to use.

7.KESS V5.017 software is very easy to install, just follow the tips to click "Next Step", then it will work fine!

8.No need activate ,install&works directly

9.Works on Win XP Win7 32bit Win 8 etc.

10.No Checksum Error

11.Multi-language available: English, German, Spanish, Italian, Portuguese, French.

12.Kess can easily read and write ECU via obd2 cable for most cars, means do not need to remove ecu from car. but for some car, kess also can work via tricore , means need to remove ecu from car.

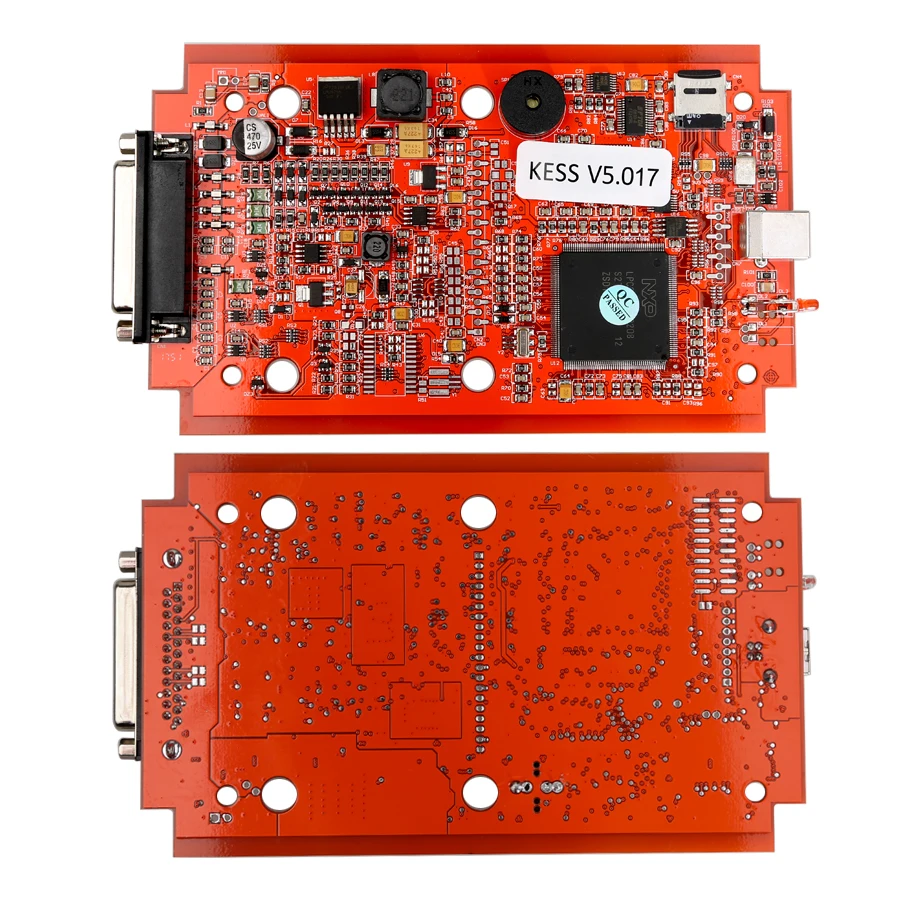

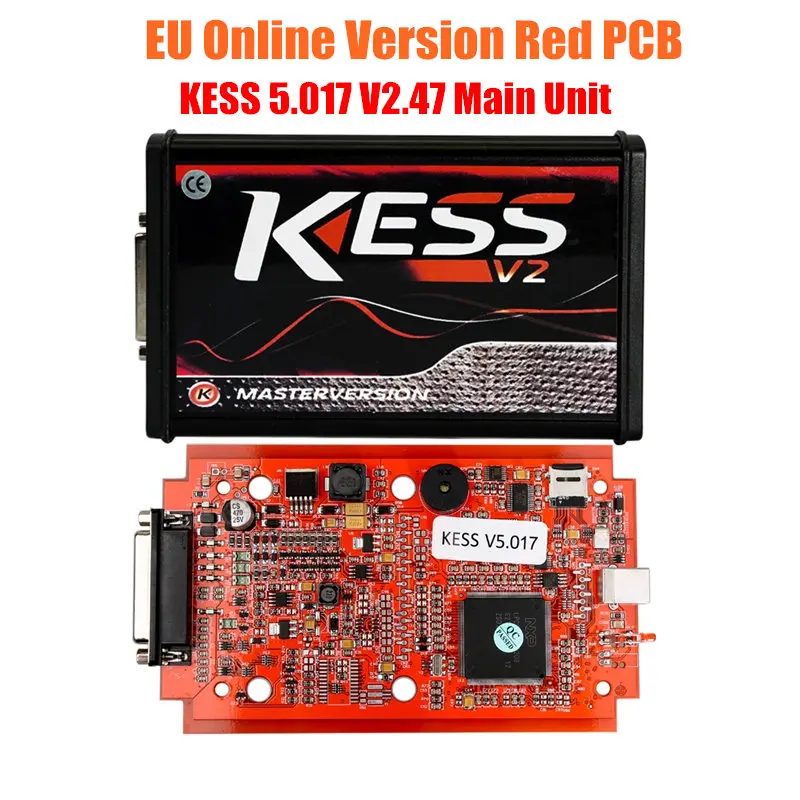

KESS EU Version Red PCB Board Advantage:

1. The left upper corner and the lower right corner notch size is not the same

2. More than buzzer

3. WFs = Infineon, BCR112 NPN Digital Transistor

4. 27E = ON Semiconductor NUP2105LT1G

5. 6DW = NXP BC817,215 NPN Bipolar Transistor

6. A6c =MMUN2113LT1G / MMUN2113LT3G

7. K5B = BC807-25-7-F PNP Bipolar Transistor

8. Using imported Japanese Murata filter NFE61PT472C1H9L

What is new for KESS V2.47?

KESS V2.47 added new protocols:

· Caterpillar A5E2 P549

· VOLVO 1.6/2.0 Continental SID807 P489

· Ford Truck FPT ENGINE BOSCH EDC7U31 KLINE P548

· Husquarna KEIHIN P554

· ALL SIMOS18 18.1 18.2 NEW GENERATION 4,5mb

· Fixed many checksum bugs

What is different between KESS V2.47 and KESS V2.23?

1.KESS V2.23 works with KESS and ktag. But V2.47 only works with red KESS.

2.KESS V2.47 add much more car models and ecu protocols than V2.23 Ksuite, V2.47 supports some vehicles until 2017.

Kess V2 has several built in features and safeguards including:

1. Check of the battery voltage in real-time

2. Full Recovery function in case of problems

3. Automatic correction of the Checksum, (where available)

4. Boot-Loader mode supported

5. Management of the programming counters

6. ScanTool function to remove DTC

7. Several options of reading/ writing speed

8. Option to write full file Section of the map

9. Full integration with ECM Titanium,which means it can work with ECM Titanium perfectly

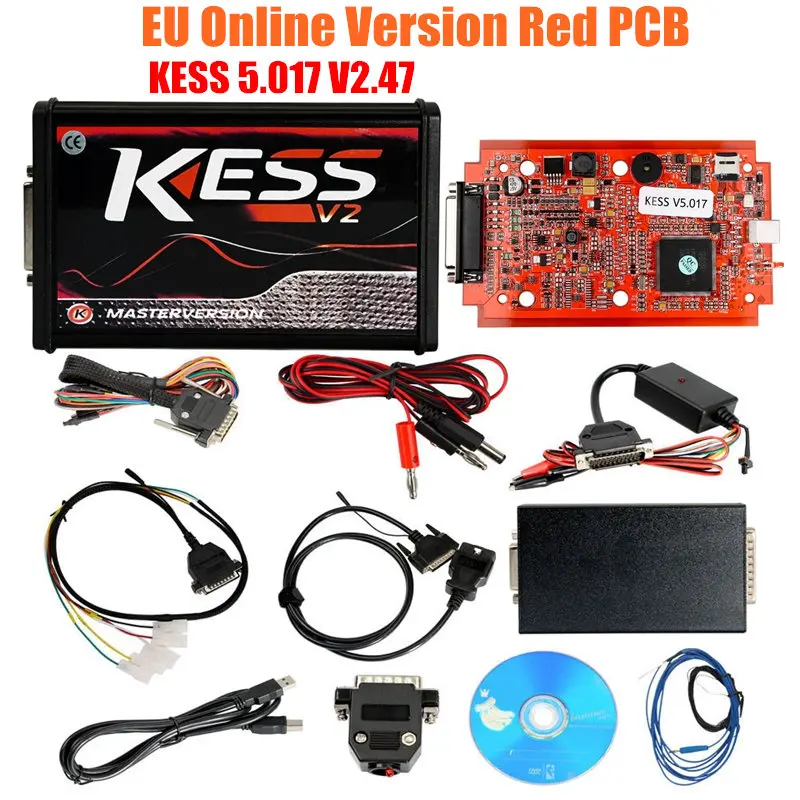

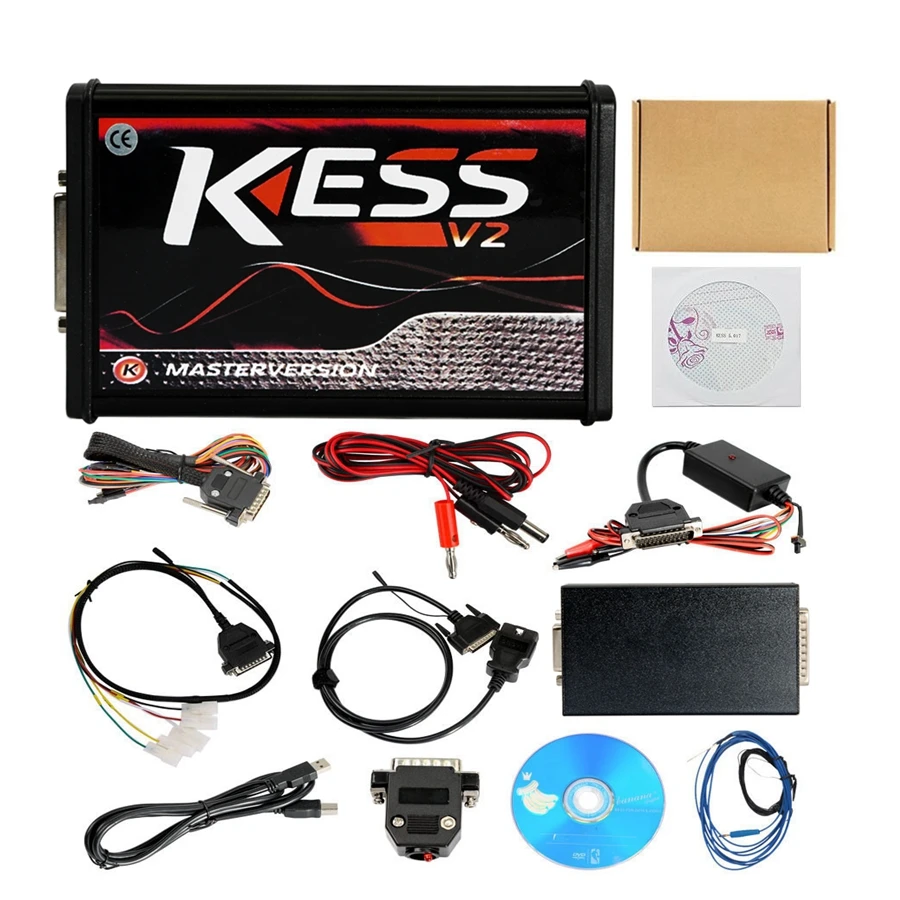

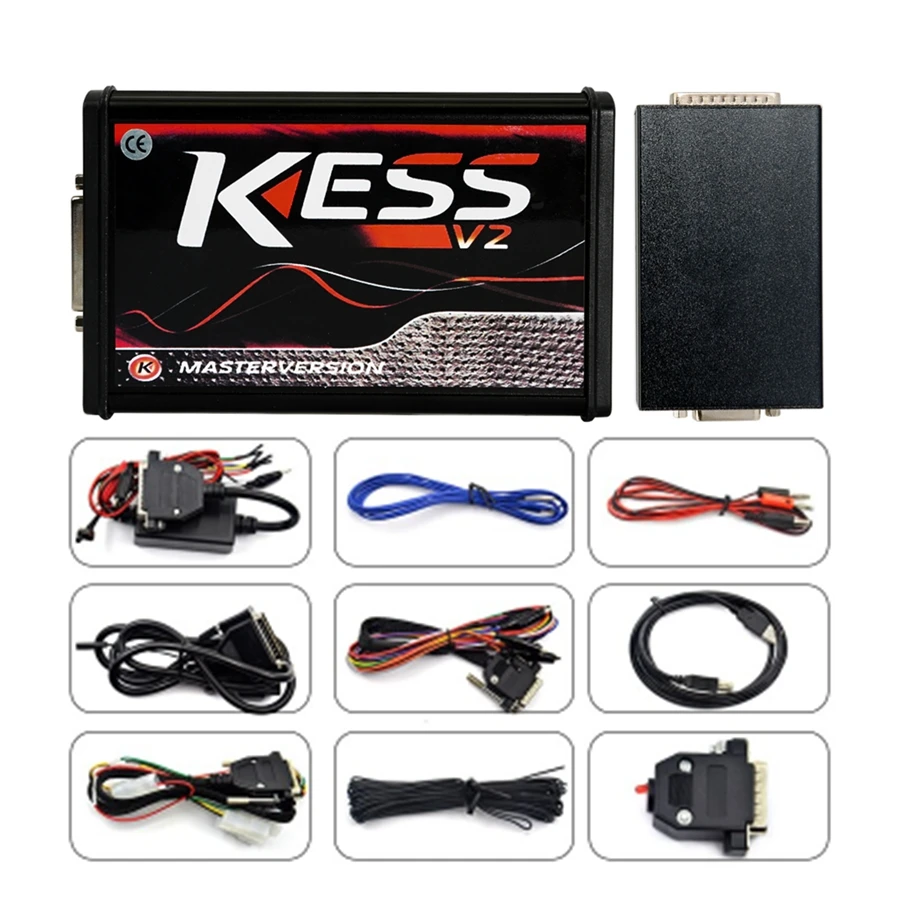

KESS V5.017 Package List:

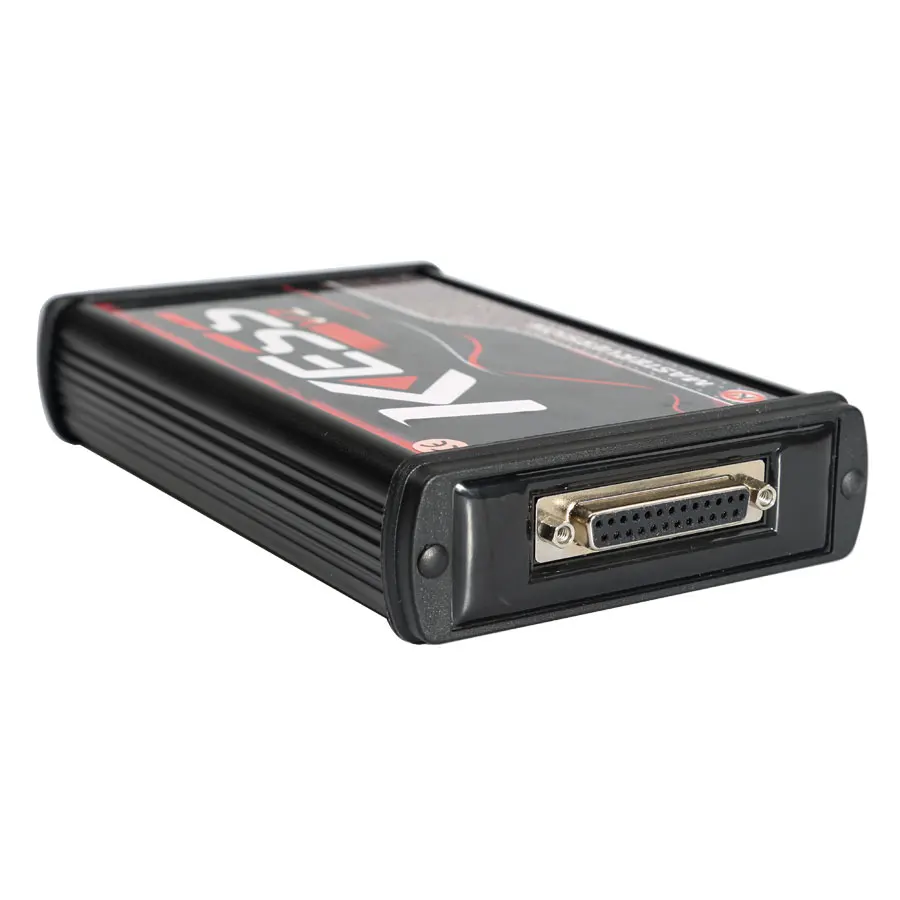

1 x KESS Main Unit

1 x Tricore Module

1 x TRICORE CABLE

1 x OBD2 standard Cable

1 x 144300KCAN

1 x K4 Cable

1 x 14P600KCK4

1 x UNIVERSAL Cable

1 x 144300K201

1 x USB Cable

1 x CD

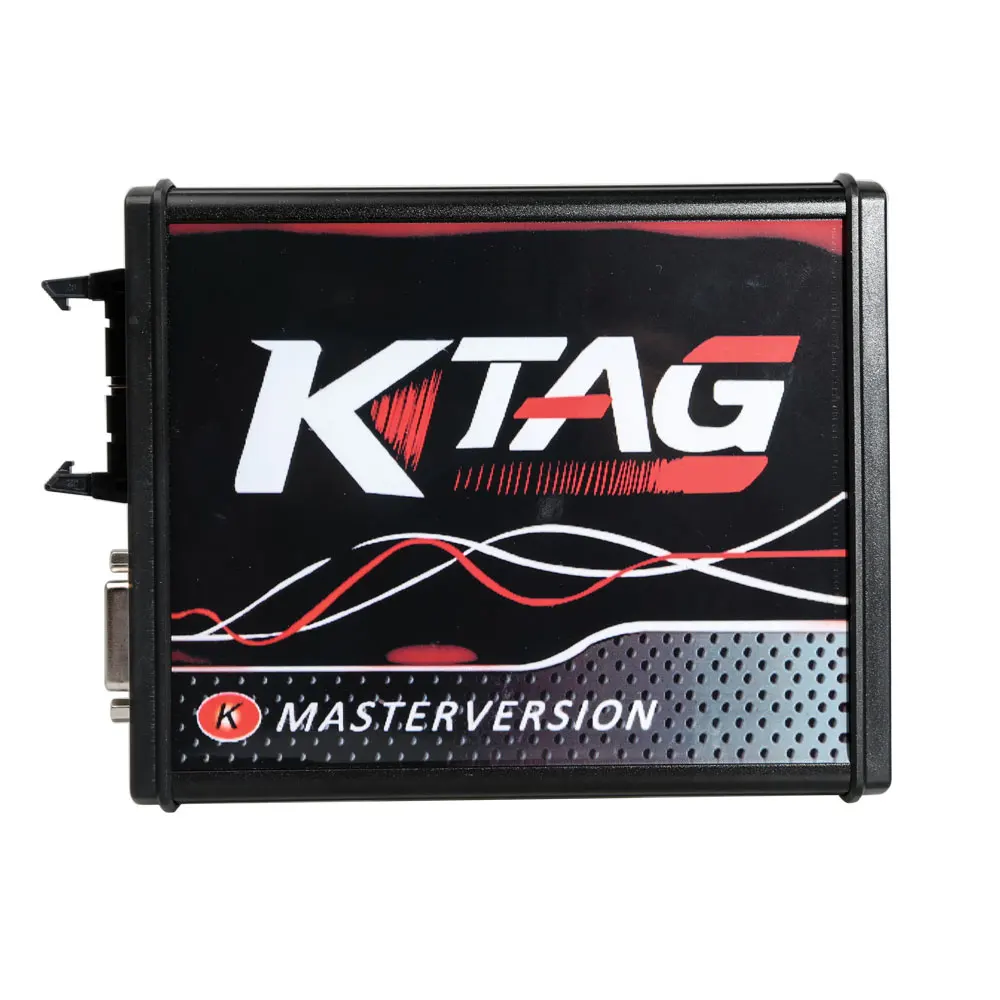

KTAG 7.020 Newest V2.25 EU Online Version Master Version Red PCB New 4LED No Tokens Limited Supports Full Protocols With GPT Cable for GPT Function

KTAG V7.020 New Added Features:

1. Hardware version: V7.020 Software version: V2.25,Master Version ECU Programming Chip Tuning Tool

2. No Tokens Limited, Unlimited Version

3. Online Version,no need disconnect internet ,no worry locked

4. Multi-Language available: Italian Deutsch English French Portuguese Spanish

5. Computer requirements:XP/WIN7/WIN8/WIN10

6. Update:By CD or Download link only

7. Can do all the functions for KTM100 KTAG V7.003

8. KTAG V7.020 can support much more truck/tractor/motorcycle than KESS V5.017 !

9. For Some cars. KESS V5.017 just can read it. But KTAG V7.020 can read and write it.

10. KTAG V7.020 add a GPT cable with GPT Functions.

( GPT is new password algo cryptography that is implemented in new Tricore microcontrollers. our KTAG v7.020 can easily read and decrypt the secret password and it automatically unlocks/unprotects the Tricore sectors so it can read and write both Flash and Eeprom )

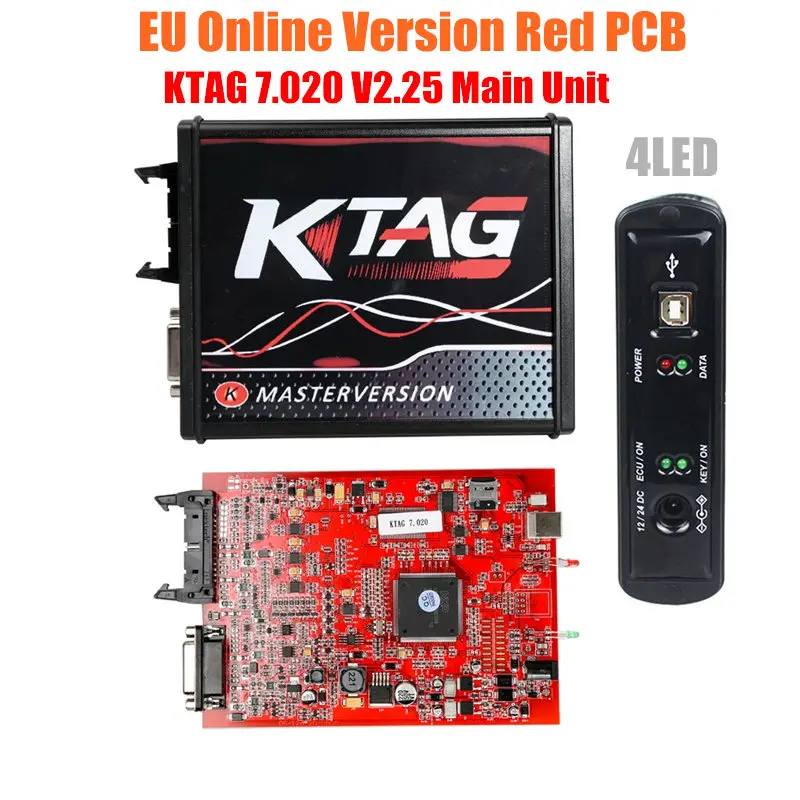

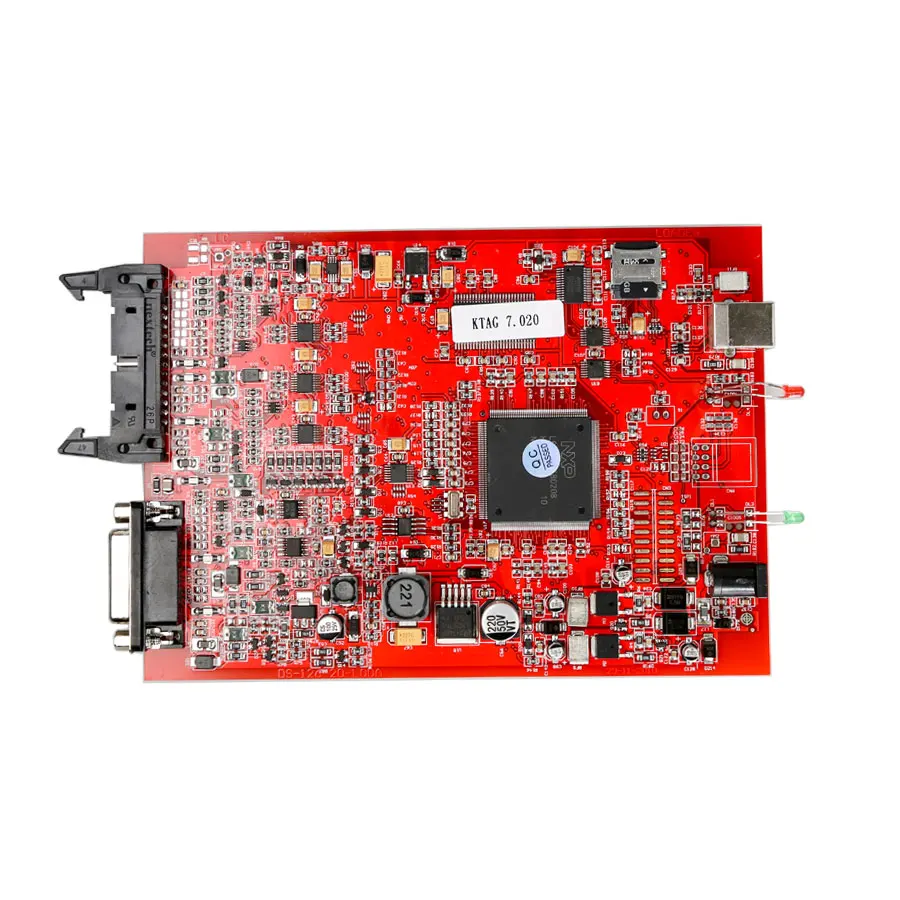

Red PCB EU Online Version With NEW 4LED

1. use of imported Japanese Murata NFE61PT472C1H9L filters

2. 2.8x WFs = Infineon, BCR112 NPN Digital Transistor

3. 3.7x 27E = ON Semiconductor NUP2105LT1G

4. 4.8x 6DW = NXP BC817215 NPN Bipolar Transistor

5. 5.3x A6c = MMUN2113LT1G / MMUN2113LT3G check your ktag PCB may already have 3 x A6c

6. 6.2x K5B = BC807-25-7-F PNP Bipolar Transistor

Red PCB EU Online Version With NEW 4LED

1. use of imported Japanese Murata NFE61PT472C1H9L filters

2. 2.8x WFs = Infineon, BCR112 NPN Digital Transistor

3. 3.7x 27E = ON Semiconductor NUP2105LT1G

4. 4.8x 6DW = NXP BC817215 NPN Bipolar Transistor

5. 5.3x A6c = MMUN2113LT1G / MMUN2113LT3G check your ktag PCB may already have 3 x A6c

6. 6.2x K5B = BC807-25-7-F PNP Bipolar Transistor

KTAG Description:

The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader FOR Mitsubishi/Infineon Tricore/ST communication lines into a single product.

K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

What is the advantage of KTAG V7.020 over than other EUC Chip Tuning Tools in the market?

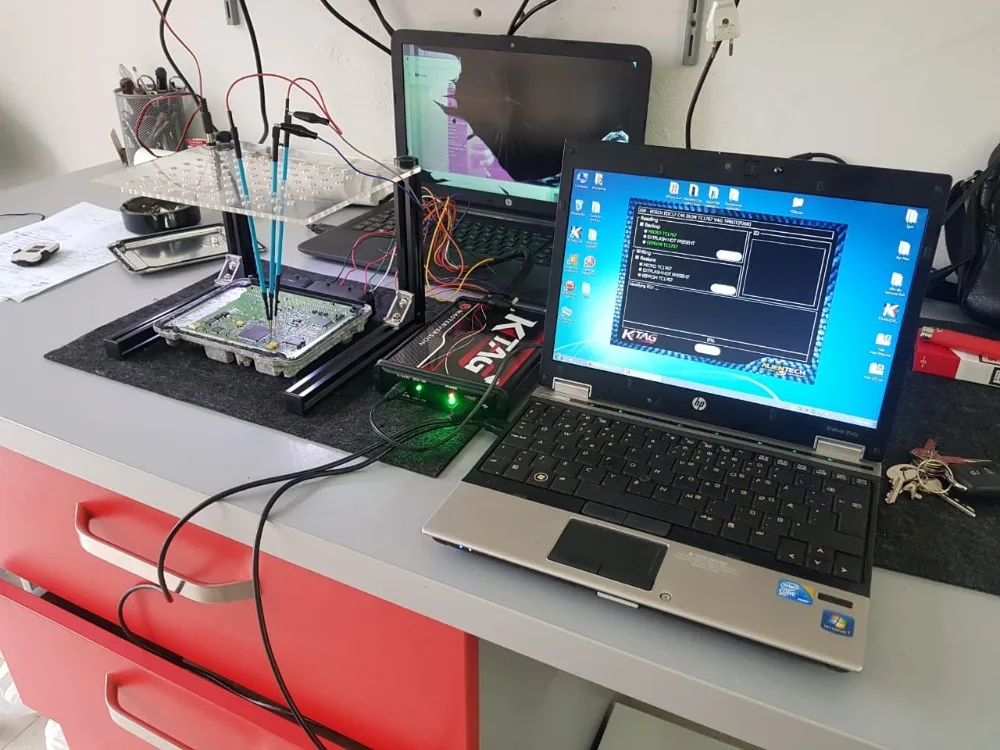

There are lot ECU that need to disassemble from the car and open and this is the case for all the ECU that need to be programmed with Jtag, BDM and Boot protocols, so KTAG is needed,as the new generation ktag master,ktag 7.020 is the best choice.

KTAG V7.020 New Features

Many encrypted new car models works I.E for Toyota 76FXXX, for PSA 17.4.4, for Ford E83, for VW 17.5.5 (1766), for Mercede 276ECU, for Toyota 76F, etc.

100+ ECU types added

Support BDM Function Well, no checksum error, available Protocols BDM MOTOROLA MPC5xx

Support both Car, Motorcyle and Truck ECU Programming

Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN

Works Very Well On DENSO, GPT, NEC Protocols

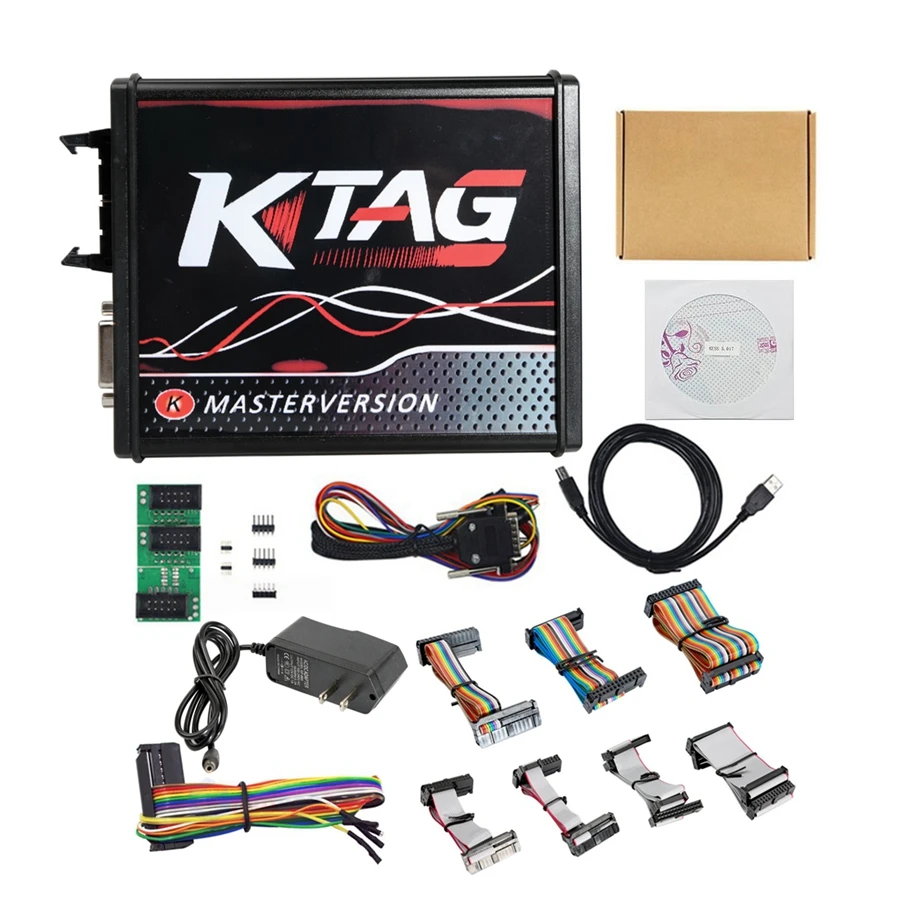

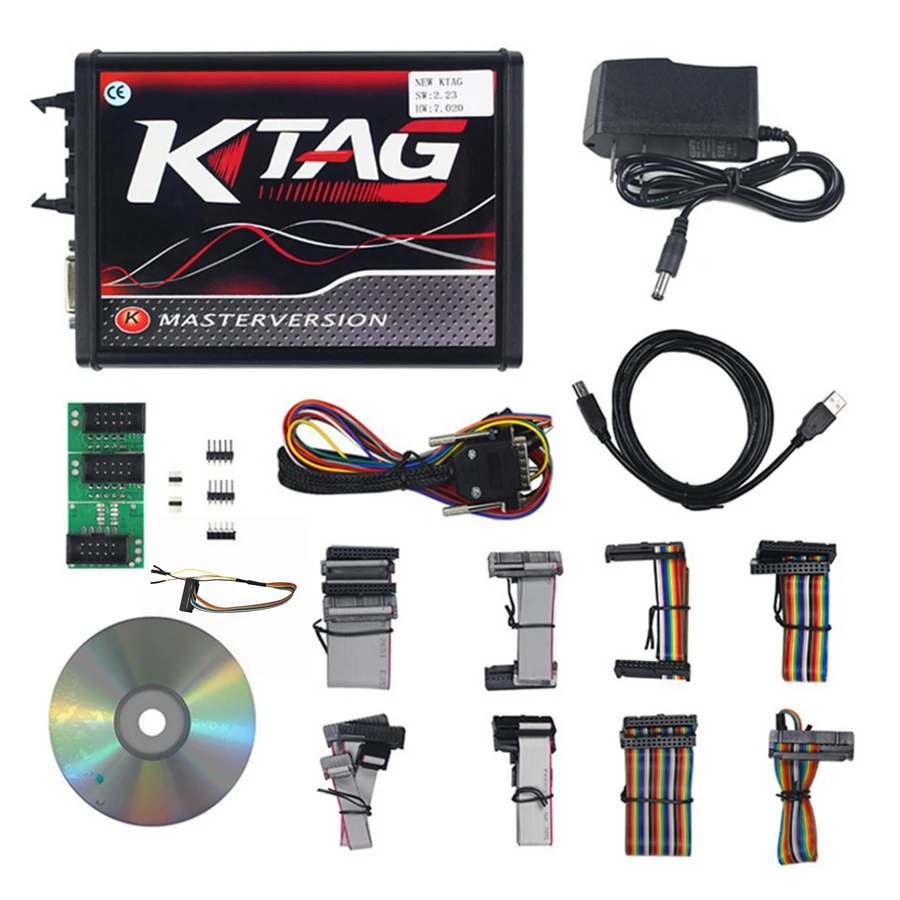

KTAG V7.020 Package List:

1 x KTAG Main Unit

1 x GPT Cable

1 x 144300T 104

1 x 144300T 103

1 x 144300T 101

1 x 144300T 106

1 x 144300T 102

1 x 144300T 105

1 x 144300T 100

3 x Chips Inside

1 x Multi-Color Cable

1 x USB Cable

1 x 12V DC Power Adapter US Plug

1 x CD
